Name: Spannsystem Premium Set für Lochraster Ø 20 mm
Brand: RUWI
SKU: RUWI27794
Price: 543.59 EUR
Availability: InStock

Premium clamping system set for Ø 20 mm hole pattern - RUWI I Tools for wood professionals

Premium clamping system set for Ø 20 mm hole pattern

€543,59

plus shipping costs

Quality craftsmanship made in Germany

Fast and reliable shipping

From wood professionals for wood professionals

In stock: In your workshop in 3-5 working days
Backordered, available soon

Our tools are shipped by DPD and DHL and usually arrive within 3-5 days. You will receive shipment tracking by e-mail.

Our larger tools are shipped by Schenker and arrive within a few working days. On request, the shipping company can also come at a desired time and you can coordinate with the shipping company by telephone.

Packaging dimensions
- Packaging: In cardboard box, shipped by DHL or DPD
- Dimensions: 740 x 530 x 110 mm
- Weight: 11.2 kg

Scope of delivery
- 1x organizer panel with locating pins
- 1x round adapter plate with horizontal clamp
1x round adapter plate with vertical clamp
6x clamping bolts ø20 mm with washer
4x open plates 180 x 40 with thread
4x pivot bearing with grub screw for eccentric clamp
4x plastic eccentric clamps
2x open bracket 80 x 40 x 60
2x stop screws
2x adapter blocks for raising the clamps on the round adapter plate

Our tools and machines are built for long-term use. We only use high-quality components and have gained a lot of experience to avoid problems in the workshop. That's why we have no problems with warranty requests - even if it goes beyond 2 years. We are always looking for a good solution together.

We have 100% spare parts in stock.

Accessories

The principle behind it

Reiner Ruggaber

Brief description

With the clamping system set for hole patterns, you can quickly and easily fix all components to your hole pattern table with 20 mm holes. The extensive range of accessories offers you maximum flexibility for a variety of clamping and stop solutions. This means you can set up simple or complex constructions securely in no time at all and dismantle them just as easily.

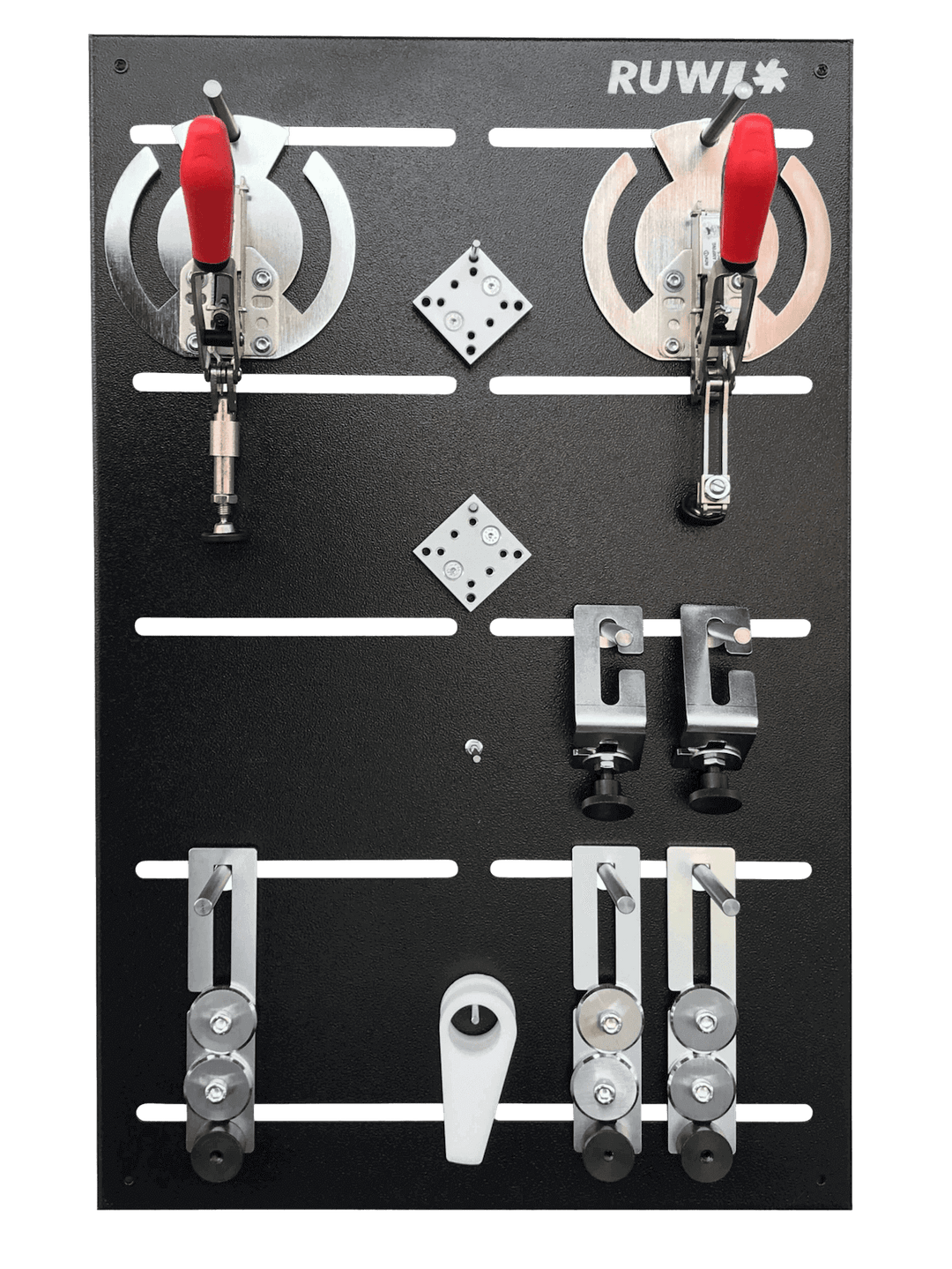

Whether fixing, clamping or mounting - the practical wall panel provides clear storage for all accessories and offers additional space for further accessories, as you can position the mounting pins flexibly in the grooves. All components can also be ordered individually.

Possible applications

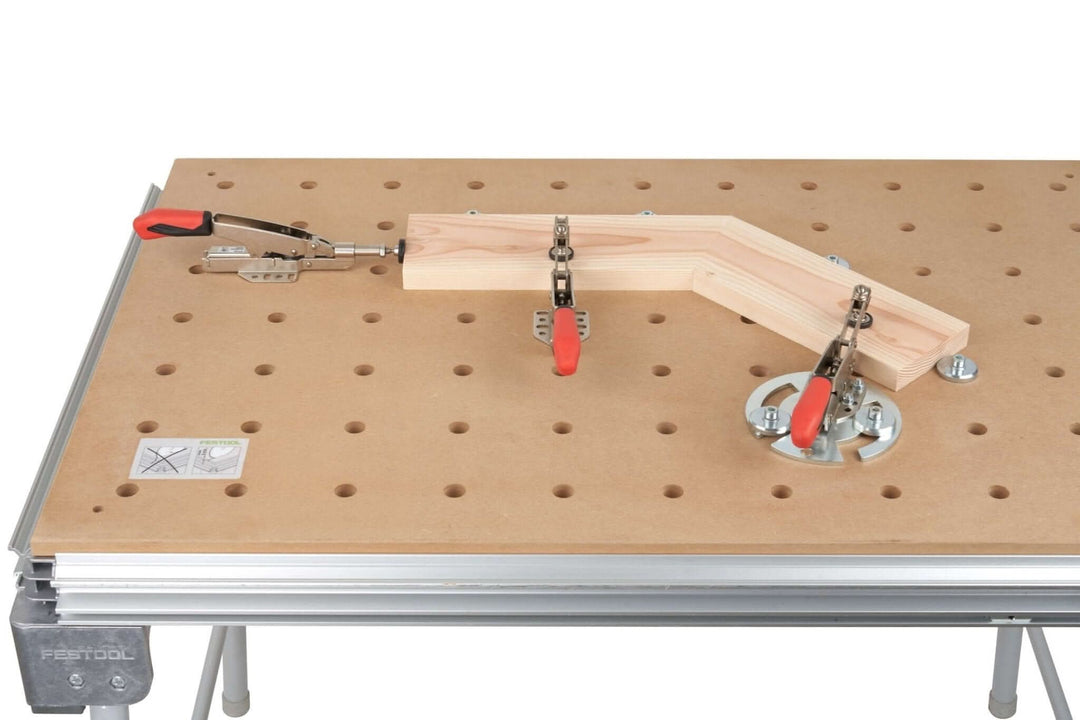

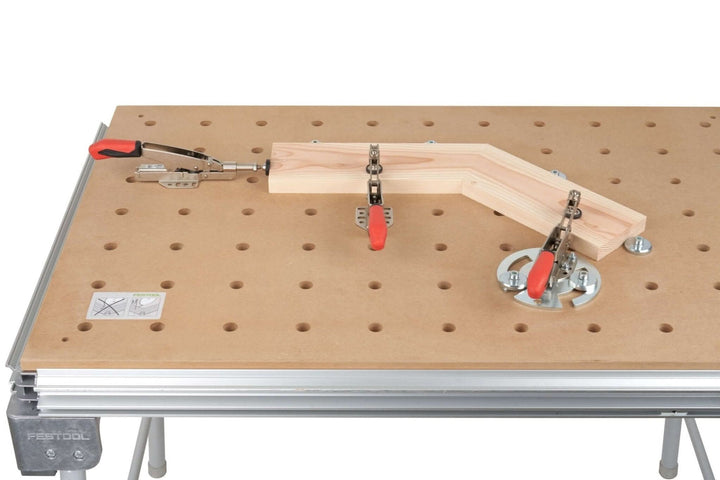

Fast and flexible fixing of workpieces on perforated grid tables
Ideal for precise clamping tasks during milling, drilling, grinding and assembly
Suitable for complex devices and simple stops
Universal use in the workshop, in schools and training companies
Perfect organization thanks to wall panel with variable suspension

Downloads

RUWI product catalog PDF

All details

- Wall panel dimensions: 700 x 450 mm
- Wall panel material: Sheet steel, powder-coated, folded part with grooves
- Clamping system: Perforated grid Ø 20 mm
- Clamping device material: Galvanized / burnished steel, aluminium, POM
- Horizontal clamp: Length 253 mm, clamping range 0 - 35 mm
- Vertical clamp: Length 244 mm, clamping range 0 - 40 mm
- Plates and brackets: Laser-cut and galvanized steel
- Weight: 10.2 kg
