vertical toggle clamp round adapter plate clamping bolt 20 mm)

Brief description

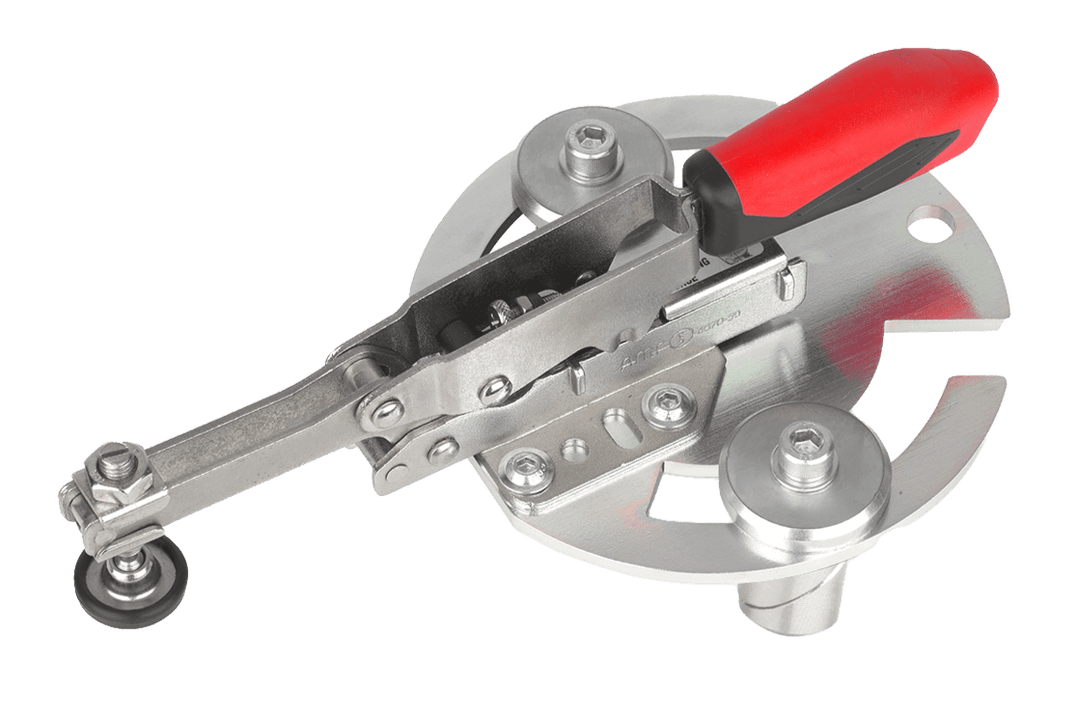

The RUWI vertical toggle clamp adapter plate your workpiece from above—forhole grid. The round adapter plate Ø 140 mm) is secured to the grid with twoclamping bolt Ø 20 mm, hex socket screw SW 6): two anchor points keep the clamp from rotating. The plate’s elongated hole allows you to freely position the clamping point, even slightly offset.

The stroke compensation material thicknesses up to 40 mm, 35 mm of which are automatically accommodated without readjustment. With a length of 244 mm, the clamp easily extends over panels, frames, and individual parts. If you need more clamping height for particularly thick components, place the 50 × 50 adapter block underneath.

The horizontal toggle clamp adapter plate presses against a stop on the side. If you need the vertical toggle clamp adapter plate—attached directly with a clamping bolt—the vertical toggle clamp hole grid is the sleek solution; the positioning angleserves as a fixed counterholder. You can find additional clamping accessories in lifting table.

Applications

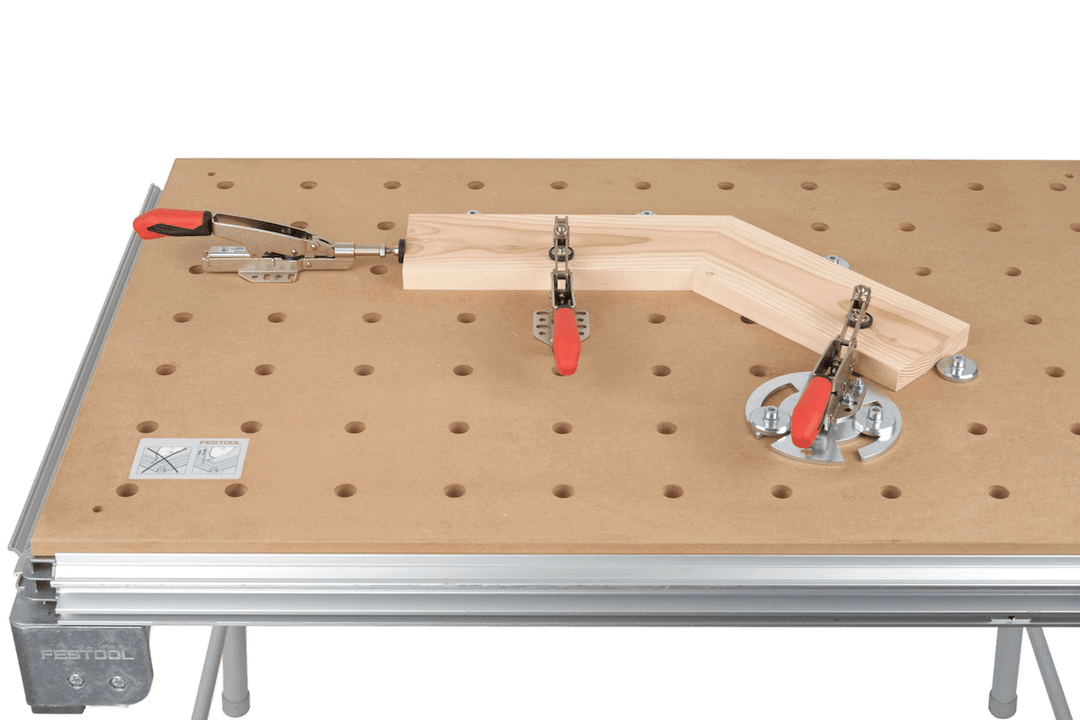

• Clamping workpieces from above – forhole grid
• Round adapter plate Ø 140 mm) with a slot—position the pressure point freely and slightly offset
• Twoclamping bolt Ø 20 mm) – secure, non-rotating hold
• stroke compensation 40 mm, of which 35 mm is automatic without readjustment
• You can combine it with the 50 × 50 adapter block for more clamping height on thick workpieces.

Downloads

RUWI Product Catalog 2026 (PDF)

All the details

• Dimensions and weight
- Length 244 mm
- Round adapter plate 140 mm with slotted hole
- net weight . net weight kg

• Clamping mechanism and function
- Maximum stroke compensation mm
- Automatic stroke compensation mm

• clamping bolt clamping system
- Twoclamping bolt 20 mm, with Allen screws (SW 6)
- Compatible with thehole grid
