Clamping bracket with clamping bolt 20) and screw

Brief description

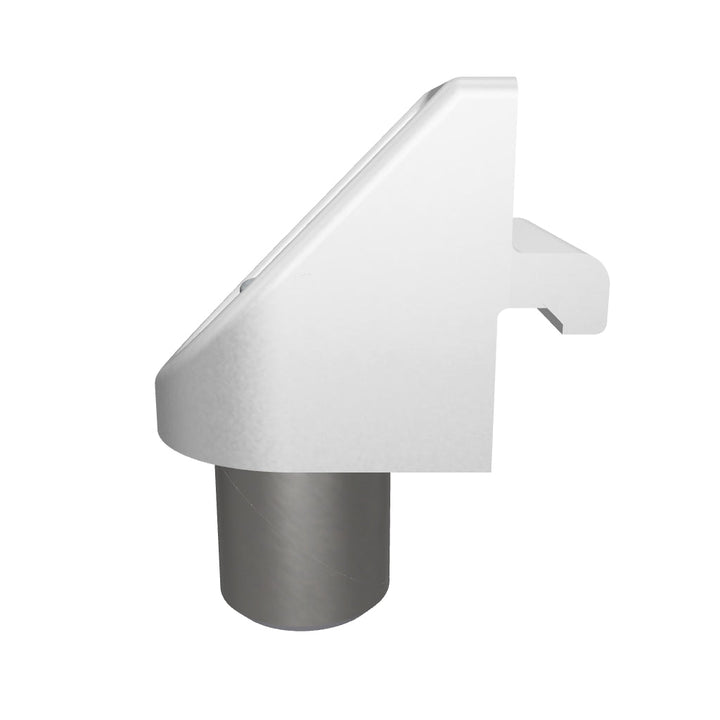

The clamping bracket securely and flushly connects an aluminum profile with slot to a 20-mm hole grid table. On one side, the bracket engages with the profile groove; on the other, a clamping bolt (Ø 20 mm) fits into the hole grid. This allows you to assemble stops, supports, and custom jigs made from system profiles directly on the work surface.

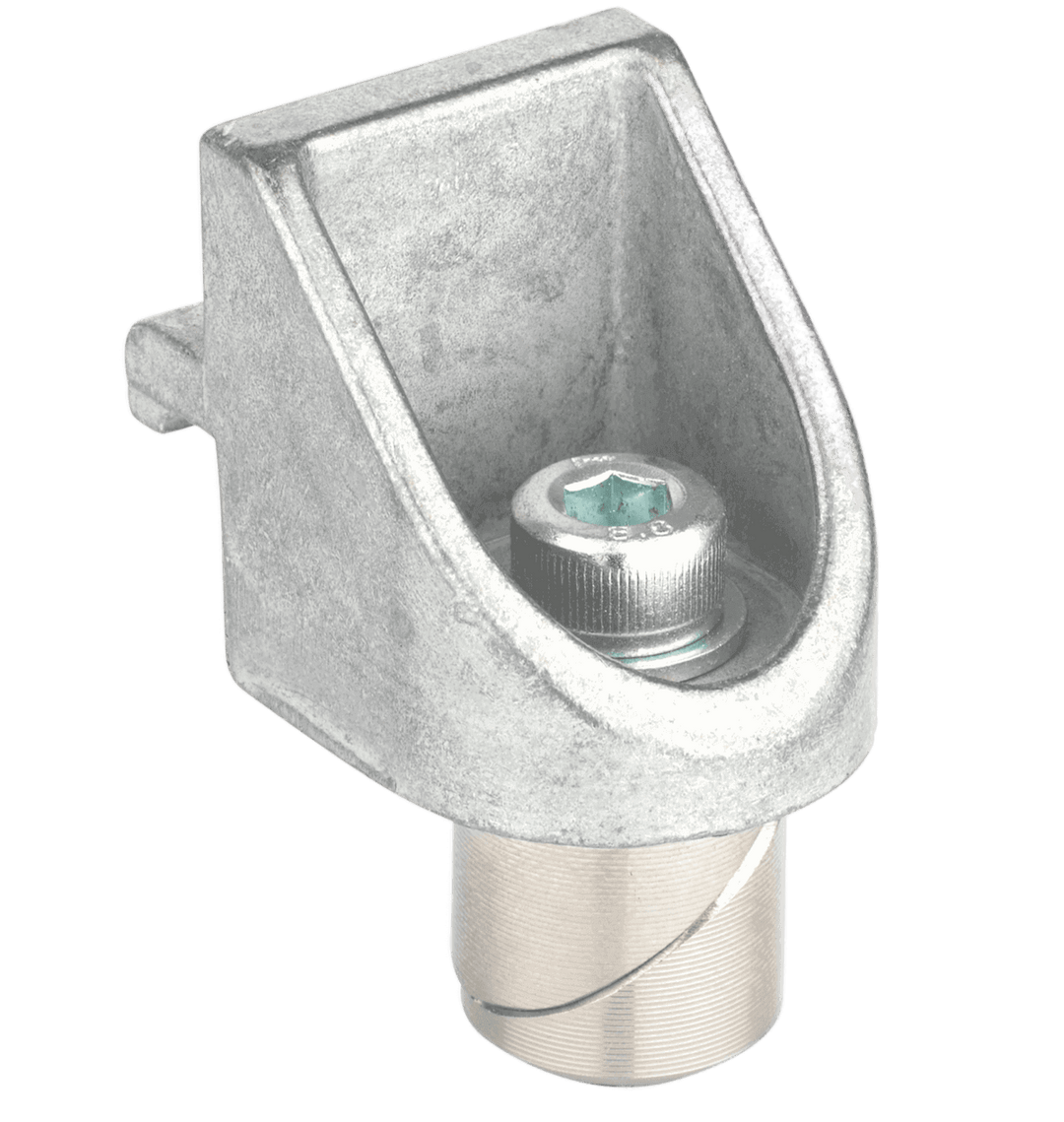

The fastening uses an Allen screw: when you tighten it, wedge pieces in the bolt spread and clamp it in the bore, so it holds even under lateral load. Since the connection has a particularly flat design, it barely protrudes, and workpieces slide freely over the table without any interfering contours.

On the profile side, the angle fits item profiles (I-type) from the Series 8 in the 40-system and item-compatible profiles from other manufacturers. On the table side, the 20-mm bolt fits into any standard hole grid including the RUWI lifting table router table as the Festool MFT or the Sauter Variobench. This allows you to combine the industry standard for aluminum profiles with your existing hole-grid table.

If you're looking for a ready-made, quick-to-install support instead of building your own profile structures, check out the RUWI support rail mm —it comes clamping lever with clamping lever brackets and clamping lever . You can find additional connecting elements under " Adapters and Stops."

Applications

• Securely and flushlyhole grid slot(Item / item-compatible) in thehole grid

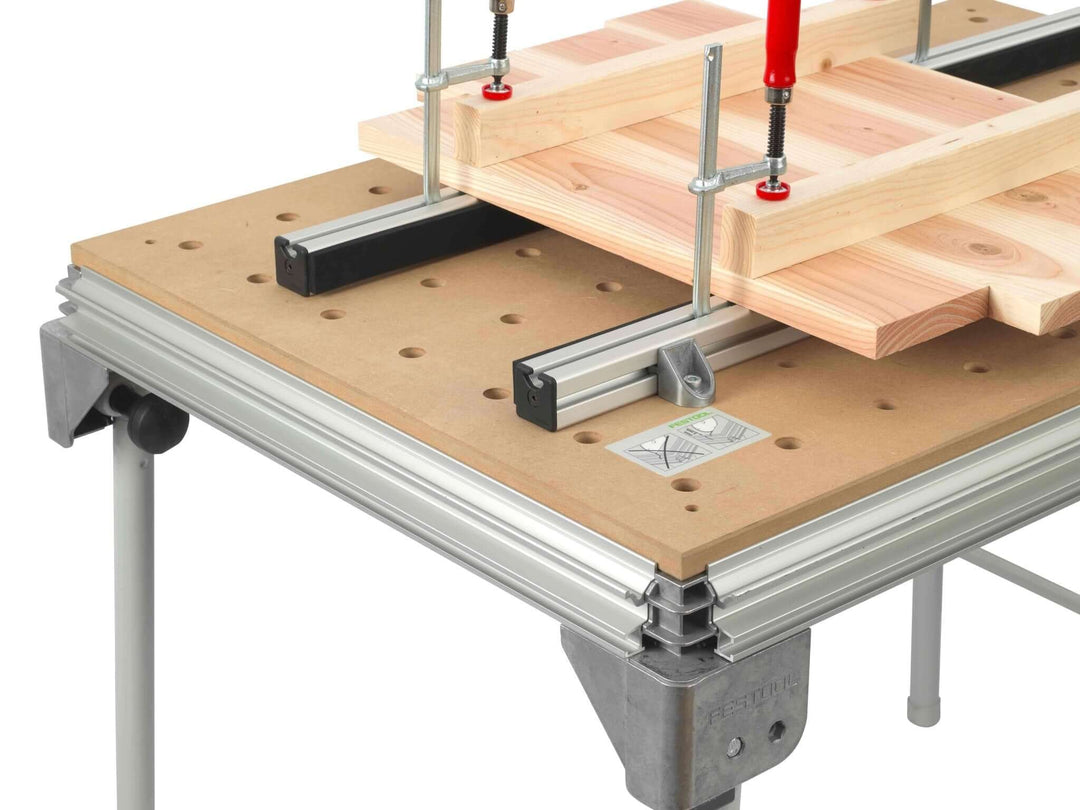

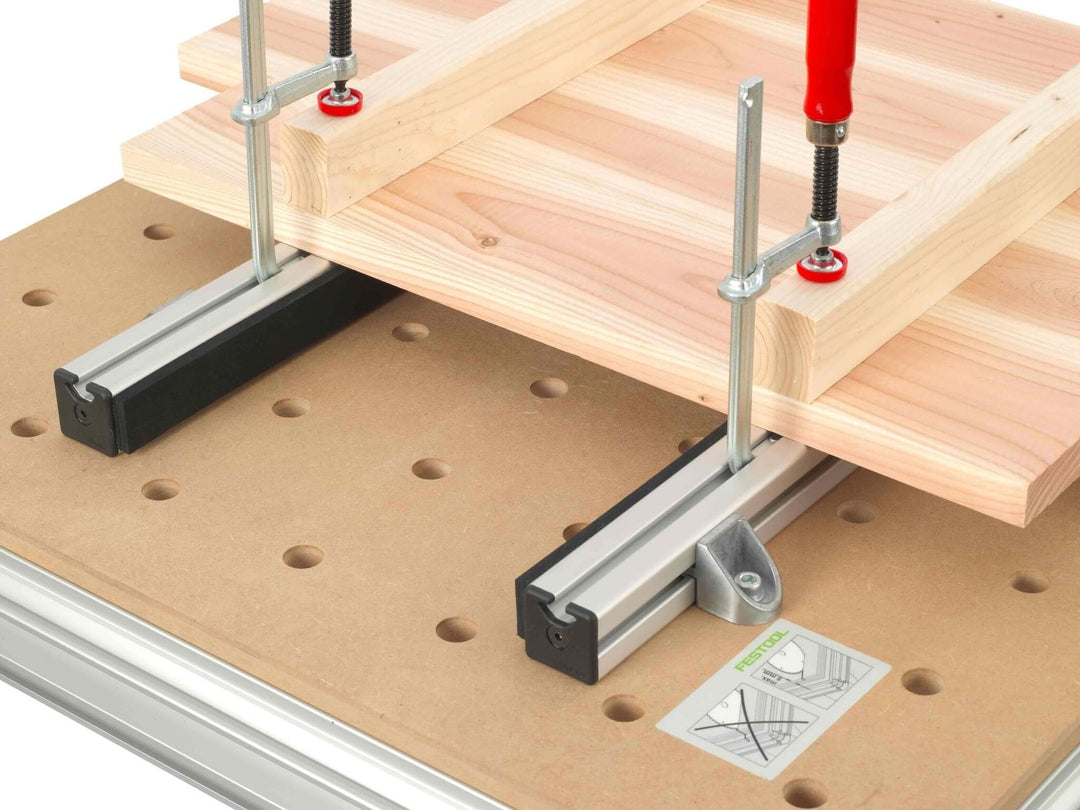

• Build your own stops, supports, and fixtures from system profiles on the work surface
• Secure hold even with lateral load, thanks to the spreading wedge pieces
• Flat design without an interfering contour – workpieces slide freely over the table
• Fits on the table side of RUWI lifting tables router tables, Festool MFT, Sauter Variobench, and other 20-mm tables

Downloads

RUWI Product Catalog 2026 (PDF)

All the details

• Function
- Connects aluminum profiles with slot to a 20-mm hole grid table
- The bracket engages in the profile groove; clamping bolt into the hole grid
- The Allen screw spreads the wedge pieces and secures the bolt in the bore

• clamping bolt
- Ø 20 mm, made of stainless steel

• Profile compatibility
- Item profiles (I-type) from Series 8, System 40
- Item-compatible profiles from other manufacturers with slot

• Table Compatibility
- All standard 20-mm hole-pattern tables (RUWI, Festool MFT, Sauter Variobench, and others)

• Weight and Origin
- net weight 160 g
- “Made in Germany”
