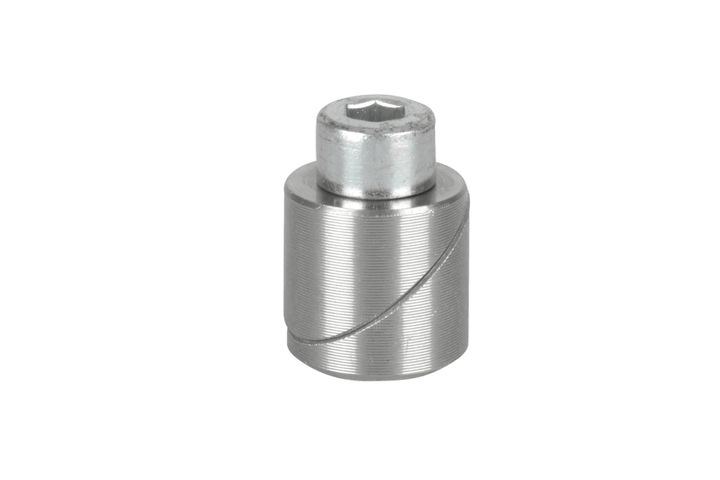

RUWI clamping bolt Ø 20 mm with Allen screw, spacer with Allen socket at the top and threaded end at the bottom
clamping bolt with Allen screw, Ø 20 mm - RUWI I Tools for Woodworking Professionals

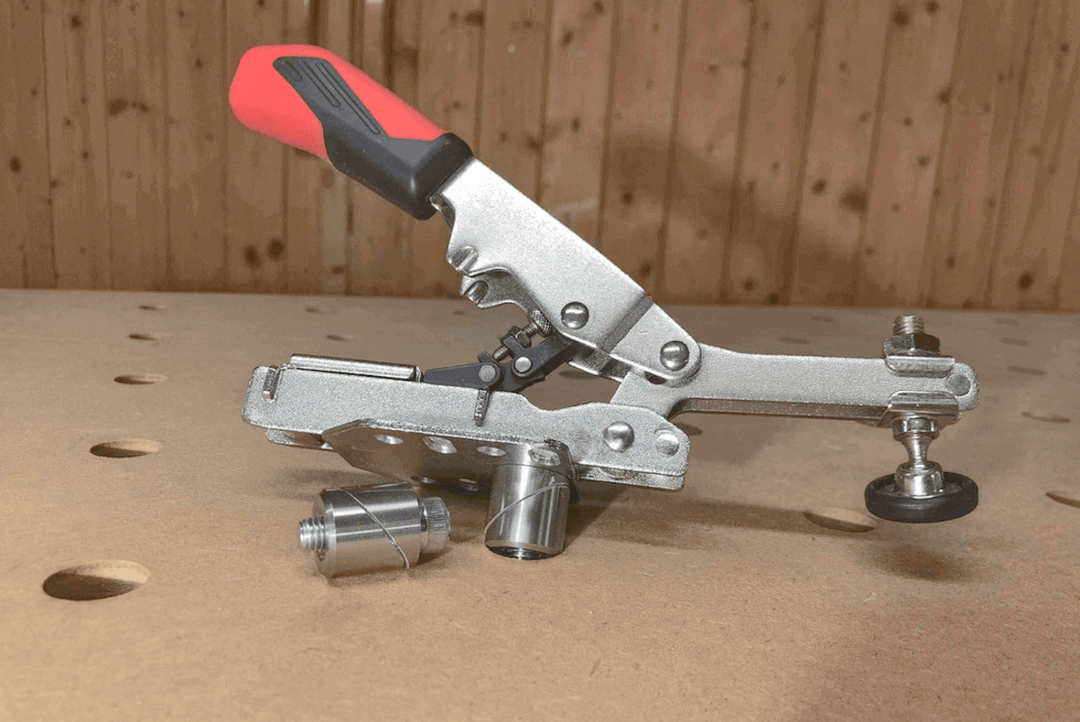

RUWI vertical toggle clamp with clamping bolt Ø 20 mm, close-up showing the removed clamping bolt on a wooden surface

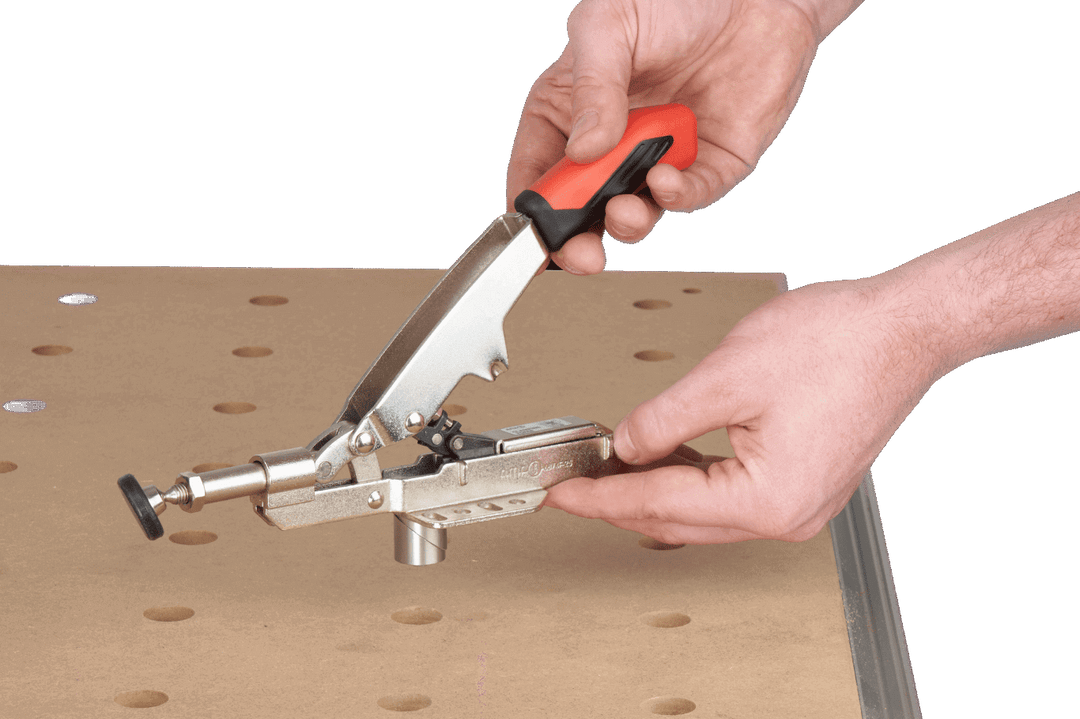

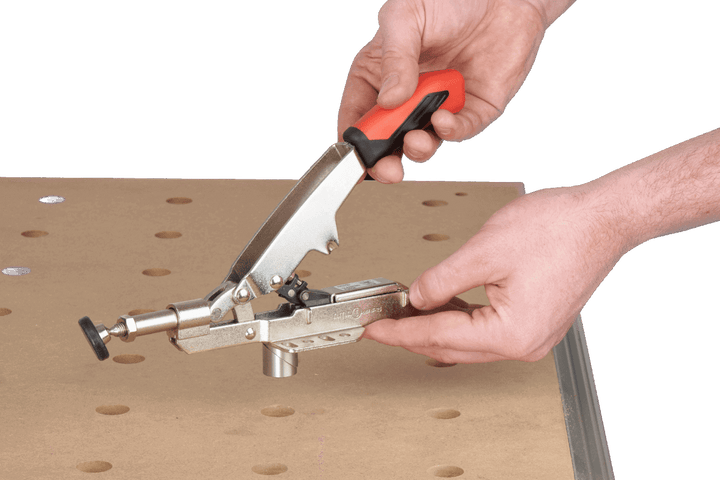

RUWI clamping bolt Ø 20 mm with an Allen screw in place; two hands turn a mounted horizontal toggle clamp on the perforated plate

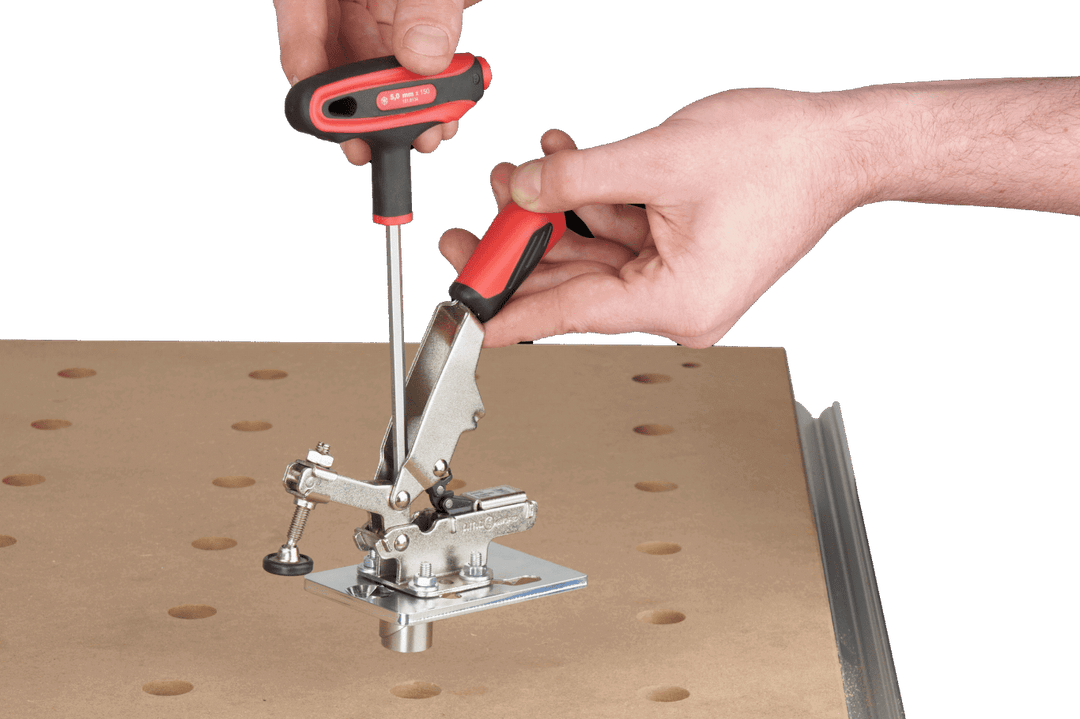

RUWI clamping bolt Ø 20 mm with hex socket screw; tightened with a hex wrench; clamp mounted on perforated plate
Clamping bolt Ø 20 mm with screw

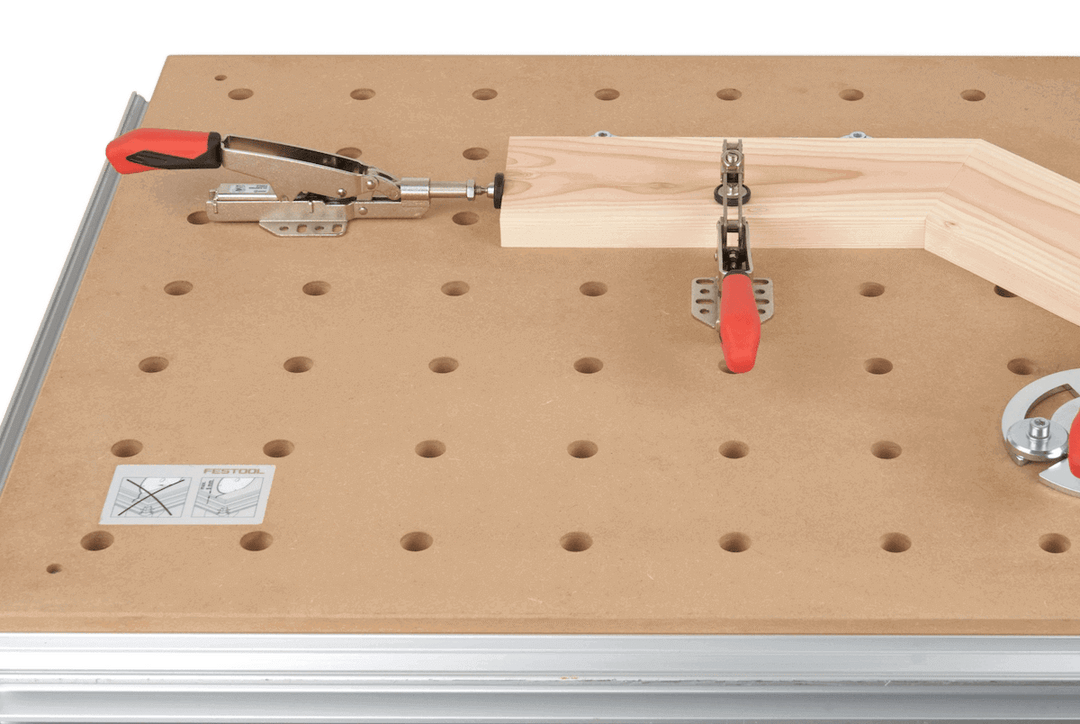

RUWI vertical toggle clamp Uses a clamping bolt , Ø 20 mm, to hold a curved workpiece from above on the perforated panel

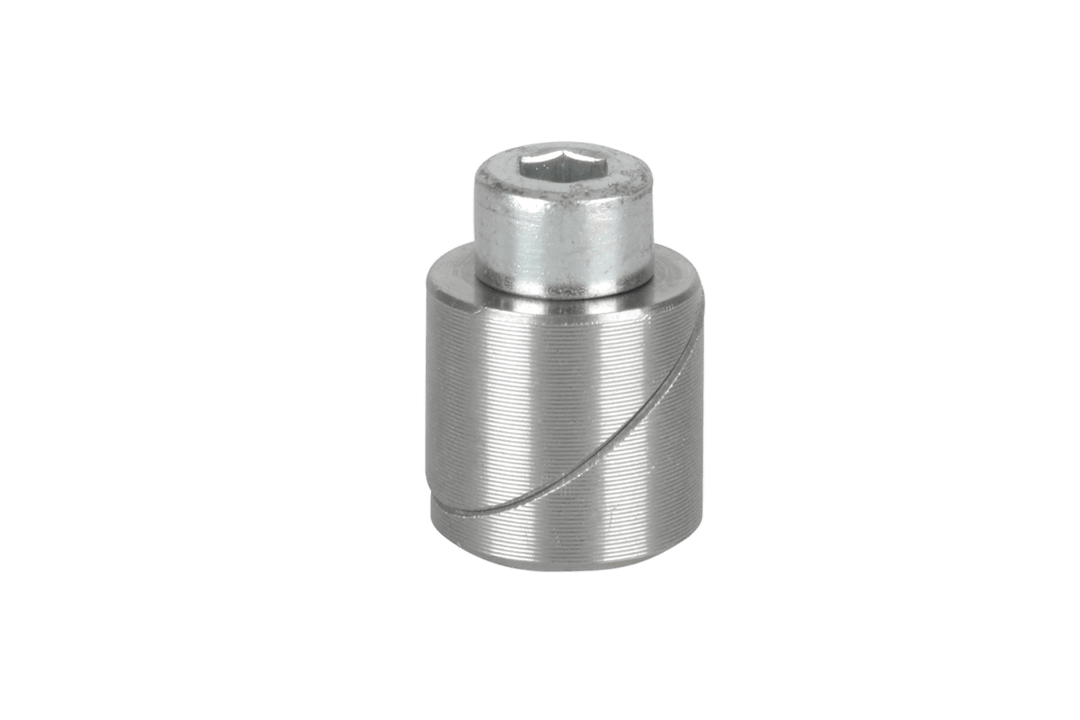

RUWI clamping bolt Ø 20 mm with Allen screw, spacer with Allen socket at the top and threaded end at the bottom
clamping bolt with Allen screw, Ø 20 mm - RUWI I Tools for Woodworking Professionals

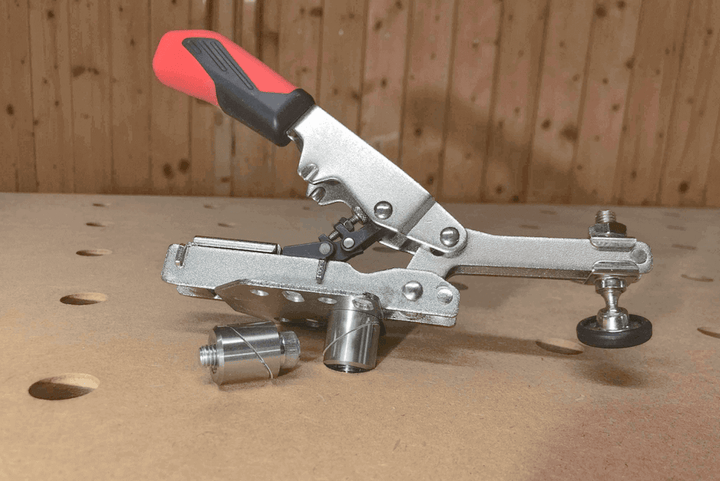

RUWI vertical toggle clamp with clamping bolt Ø 20 mm, close-up showing the removed clamping bolt on a wooden surface
RUWI clamping bolt Ø 20 mm with an Allen screw in place; two hands turn a mounted horizontal toggle clamp on the perforated plate
RUWI clamping bolt Ø 20 mm with hex socket screw; tightened with a hex wrench; clamp mounted on perforated plate
Clamping bolt Ø 20 mm with screw
RUWI vertical toggle clamp Uses a clamping bolt , Ø 20 mm, to hold a curved workpiece from above on the perforated panel

Clamping bolt Ø 20 mm with screw

RUWI21136

€18,78
/
Includes sales tax Plus shipping costs

Calculated for your business

Deductible immediately in the year of purchase

Less than €800 net: The full amount reduces your profit in the year of purchase—provided the item can be used on its own; accessories are capitalized along with the machine (Section 6(2) of the Income Tax Act) · €18.78 gross

Calculate based on your tax rate and delivery month →Which clamp holds your workpiece? Go to the finder →

Business, 30% tax rate, delivery this month. Special depreciation under Section 7g requires a maximum profit of €200,000 in the previous year—above that amount, only declining-balance depreciation applies. This is for informational purposes only and does not constitute tax advice.

  • Made in Germany
  • By woodworking professionals, for woodworking professionals
  • Spare parts are always available
  • In stock – Delivery time: 1–3 business days
  • Out of stock – coming back soon
Take a look first, then decide

Not sure if this is a good fit for your workshop? During our workshop consultation, we’ll take a look at it together—in person, via video, or at a partner location. It’s free, with no pressure to buy.

Schedule a workshop consultation
Prefer to ask directly? +49 7402 8414

Packages are shipped via DHL or DPD and usually arrive within 1–2 business days. You'll receive a tracking number via email.

Router tables, lifting tables, and other large tools are shipped via Schenker, usually arriving in about 3 business days. Upon request, the carrier can deliver on a specific date—just coordinate the details with them by phone. If delivery takes longer than expected, we'll let you know in advance.

Packaging Dimensions
• Shipped in a cardboard box via DHL or DPD
• Dimensions: 190 × 140 × 50 mm

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

Accessories

Which clamp holds your workpiece in place?

The Clamp Finder guides you from the workpiece to the right clamp.

Launch Finder →

With the clamping bolt, you can convert existing toggle clamps with a center hole in the base plate to the 20-mm hole grid. Insert the stainless steel clamping bolt through the base plate of the clamp and secure it with the included socket screw M8 (hex socket SW 6)—then insert the clamp from above into any 20-mm hole. This allows push-rod, vertical, and horizontal toggle clamps—such as those from Bessey or AMF—to continue working on your hole grid or multifunction table.

The clamping bolt features a stepless, automatic 13-mm leveling function—the clamp automatically compensates for minor height differences. The bolt is made of stainless steel with a textured surface; the screw is galvanized.

Here's how to use it

  • Reuse existing clamps: The toggle-lever and push-rod clamps from the metal shop have their bolts inserted into the center hole—and are now being used in the “ hole grid ” instead of on the screw plate.
  • Adjust the clamping points: Insert the clamp and bolt from above into the next hole—the clamping position follows the workpiece across the entire table.
  • Compensating for height differences: The 13 mm of automatic adjustment accommodates tolerances between the clamp, bolt, and plate—the clamp fits snugly without the need for shims.

Does this fit your clamp?

This requires a center hole in the base plate of your clamp, through which the Ø-20 bolt engages with the M8 screw. On the table side, the bolt fits into any 20-mm hole grid —the RUWI lifting tables Basic, Classic, and Premium models, as well as the Festool MFT and other multifunction tables. The clamping bolt with washer is available as a replacement or additional bolt for the RUWI clamping system; the lifting table system features pre-assembled RUWI clamps for the grid.

All the details

Material
clamping bolt : Stainless steel, textured surface
Screw: socket screw M8 (SW 6), galvanised

Dimensions
Diameter: Ø 20 mm

Insert
Application: Retrofitting quick-release clamps with a center hole
Compatible tables: Perforated grid tables with Ø 20 mm

★★★★★
