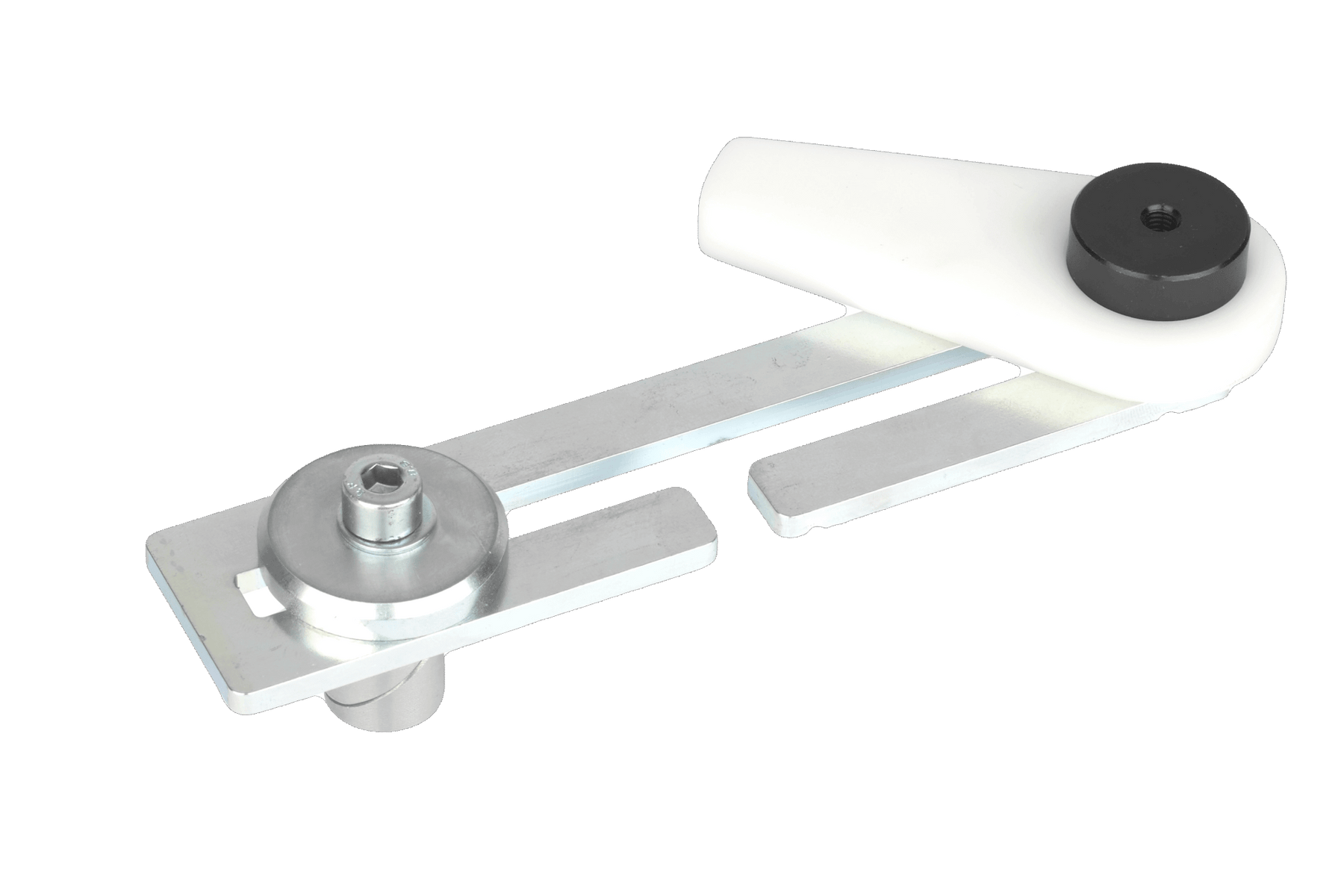

RUWI eccentric clamp with clamping bolt Ø 20 mm, cutter with a flat lever and a black rotary knob
RUWI eccentric clamp with a clamping bolt Ø 20 mm, holds a dark wood profile to a perforated panel
eccentric clamp with clamping bolt Ø 20 mm
RUWI eccentric clamp with clamping bolt , Ø 20 mm; two clamps hold a dark wooden board in place on the perforated panel

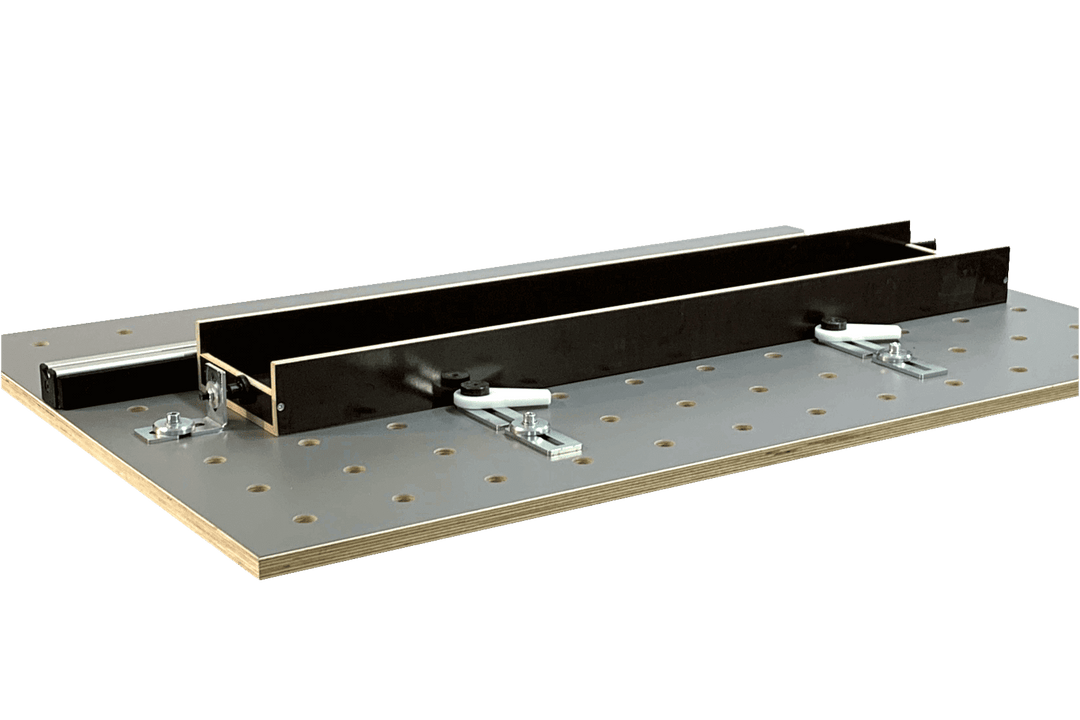

RUWI eccentric clamp with clamping bolt Ø 20 mm; three clamps hold a dark wooden rail in place on the perforated panel
RUWI eccentric clamp Using a clamping bolt , Ø 20 mm, a person is machining a fixed wooden rail with hand tools
RUWI eccentric clamp with clamping bolt Ø 20 mm, cutter with a flat lever and a black rotary knob
RUWI eccentric clamp with a clamping bolt Ø 20 mm, holds a dark wood profile to a perforated panel
eccentric clamp with clamping bolt Ø 20 mm
RUWI eccentric clamp with clamping bolt , Ø 20 mm; two clamps hold a dark wooden board in place on the perforated panel
RUWI eccentric clamp with clamping bolt Ø 20 mm; three clamps hold a dark wooden rail in place on the perforated panel
RUWI eccentric clamp Using a clamping bolt , Ø 20 mm, a person is machining a fixed wooden rail with hand tools

eccentric clamp with clamping bolt Ø 20 mm

RUWI21142

€53,67
/
Includes sales tax Plus shipping costs
Calculated for your business
Deductible immediately in the year of purchase
Less than €800 net: The full amount reduces your profit in the year of purchase · €53.67 gross
Calculate using your tax rate →Which clamp holds your workpiece? Go to the finder →
Guidance on a 30% tax rate and the purchase of a business—not tax advice.
  • Made in Germany
  • By woodworking professionals, for woodworking professionals
  • Spare parts are always available
  • In stock – delivered to your workshop in 3–5 business days
  • Out of stock – coming back soon
Take a look first, then decide

Not sure if this is a good fit for your workshop? During our workshop consultation, we’ll take a look at it together—in person, via video, or at a partner location. It’s free, with no pressure to buy.

Schedule a workshop consultation
Prefer to ask directly? +49 7402 8414

Our tools are shipped via DPD and DHL and usually arrive within 3–5 days. You'll receive a tracking number via email.

Our larger tools are shipped via Schenker and will arrive within a few business days. Upon request, the carrier can also deliver on a date of your choice, and you can coordinate the details with them by phone.

Packaging Dimensions
• Shipped in a cardboard box via DHL or DPD
• Dimensions: 190 × 140 × 50 mm

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

Accessories

Which clamp holds your workpiece in place?

The Clamp Finder guides you from the workpiece to the right clamp.

Launch Finder →

The RUWI eccentric clamp secures your workpiece to the 20-mmhole grid using an eccentric lever—a lever mechanism instead of a screw, with no tools required. You can position it freely using the plate with the slotted hole and insert it into any 20-mm hole using the clamping bolt along with the washer.

The eccentric itself is made of plastic (POM)—it clamps securely without pressing against delicate surfaces. The plate is made of galvanized steel (180 × 40 mm), the clamping bolt is made of stainless steel, and the pivot bearing (Ø 30 mm) black-oxide. This makes the clamp ideal for production runs and fixtures where many parts need to be clamped and released quickly.

Here's how to use it

  • Batch operation: Move the lever forward, the part is in place—move the lever back, next part. For repetitive workpieces, the eccentric drives each screw clamp in sequence.
  • Clamping veneer and lacquer: The POM eccentric clamp applies firm pressure without marking the surface—the workpiece is clamped directly, not on a protective backing.
  • Aligning the pressure point: The slotted hole guides the eccentric continuously to the workpiece contour, and the pivot bearing sets the angle.
  • Loading fixtures: Define a fixed clamping position within the grid—each part in the series is positioned in the same spot.

Does this go with your table?

The clamping bolt fits into any 20-mmhole grid – any RUWI lifting table , Festool MFT, Sauter Variobench, and homemade workbenches. From above, the vertical toggle clamp, and against a stop on the side horizontal toggle clamp; the positioning angle.

For welding tables with Ø-28 or Ø-16hole grid , the eccentric clamp is available for the welding table —which features a steel eccentric; additional clamping accessories are available in the lifting table system.

All the details

Material
Plate: 180 × 40 mm, steel, galvanised
pivot bearing : Ø 30 mm, steel, black-oxide
Eccentric: POM
clamping bolt : stainless steel

Clamping system
hole grid : Ø 20 mm
Positioning: via slotted hole

Weight
net weight : 0.5 kg

★★★★★
