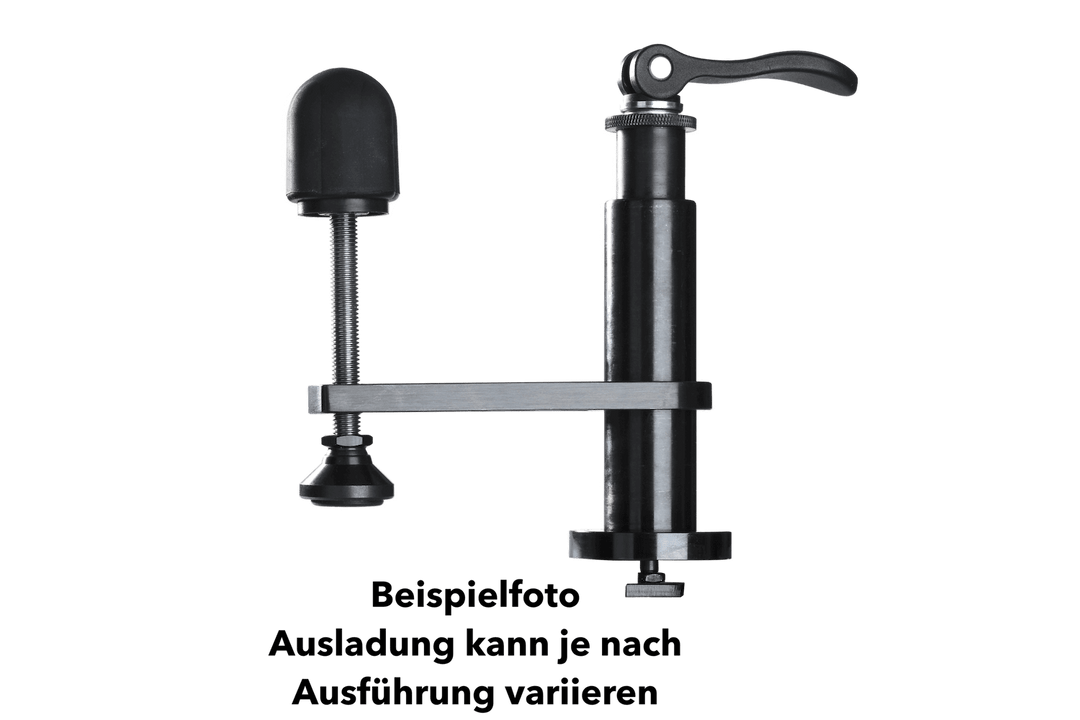

RUWI swivel clamp with eccentric lever and rubberized pressure plate, optional
Two RUWI swivel clamp (black and red) on the sliding carriage of the sliding table saw, with the saw blade in the background
Two RUWI swivel clamp are trimming a board with a natural edge on the saw table of the sliding table saw
Two RUWI swivel clamp secure a square timber at the front and back of the saw table
RUWI swivel clamp with eccentric lever and rubberized pressure plate, optional
Two RUWI swivel clamp (black and red) on the sliding carriage of the sliding table saw, with the saw blade in the background
Two RUWI swivel clamp are trimming a board with a natural edge on the saw table of the sliding table saw
Two RUWI swivel clamp secure a square timber at the front and back of the saw table

RUWI swivel clamp for sliding table saw

RUWI27250-1

€190,85
/
Includes sales tax Plus shipping costs
Calculated for your business
Deductible immediately in the year of purchase
Less than €800 net: The full amount reduces your profit in the year of purchase · €190.85 gross
Calculate using your tax rate →
Guidance on a 30% tax rate and the purchase of a business—not tax advice.
sliding table saw Manufacturer
  • Artisan Quality
  • By woodworking professionals, for woodworking professionals
  • Faster and More Reliable Shipping
  • In stock – delivered to your workshop in 3–5 business days
  • Out of stock – coming back soon

Our tools are shipped via DPD and DHL and usually arrive within 3–5 days. You'll receive a tracking number via email.

Our larger tools are shipped via Schenker and will arrive within a few business days. Upon request, the carrier can also deliver on a date of your choice, and you can coordinate the details with them by phone.

Packaging Dimensions
• Shipped in a cardboard box via DHL or DPD
• Dimensions: 315 × 225 × 140 mm

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

Accessories

The RUWI swivel clamp is a quick-clamp for the sliding table saw. Using the eccentric lever, you can clamp tool-free with one hand. The rubberized clamping plate sits on a ball joint: It adapts to the shape of the workpiece—even uneven parts—and protects the surface. This allows you to hold down springy or warped solid woods such as oak, beech, or ash without them springing up during the cut.

The maximum clamping height is 135 mm; the clamping cylinder is adjustable via the eccentric lever, and the pressure spindle features a rubberized clamping handle—with a force of 2.1 kg net weight , the clamp moves effortlessly between clamping positions.

Here's how to use it

  • Cutting small and irregularly shaped pieces: Strips, wedges, and irregular shapes are placed under the pressure plate—keep your hand on the push stick, not on the workpiece next to the blade.
  • Hold warped solid wood in place: the ball-joint plate applies even pressure across the entire surface of warped planks—oak and beech lie flat instead of springing up during the cut.
  • Trimming long planks: as a second clamp mounted directly on the sliding carriage’s “ slot ”—the plank is held at two points and moves smoothly through the blade.
  • Clamping in rhythm: Lift the lever, move the part, lower the lever—one hand clamps it, while the other feeds the next workpiece into place.

Does this go with your sliding table saw?

When ordering, select the swivel arm that matches your saw model—the arm length is designed to fit the respective slide groove: Altendorf (100 mm), Format 4 (130 mm), Martin (170 mm), Felder X-Roll (130 mm), and Hammer Series 3 (75 mm). If your saw isn’t listed, we’ll check the fit on a case-by-case basis—please contact us before placing your order.

The swivel clamp integrates with the existing RUWI sawing systems —for example, to upgrade a Classic set to a Premium set.

All the details

Machine
Compatible with: Altendorf panel saws (Type A), Felder Format 4 (Type B), Martin (Type C), Felder X-Roll (Type D), and Hammer Series 3 (Type E), as well as other manufacturers subject to individual verification

Dimensions and Function
Clamping arm: 100 mm for Altendorf (Type A), 130 mm for Format 4 (Type B), 170 mm for Martin (Type C), 130 mm for Felder X-Roll (Type D), 75 mm for Hammer Series 3 (Type E); for other manufacturers, subject to individual verification
Clamping height: up to 135 mm
Clamping cylinder: with eccentric lever, adjustable

Features
Pressure spindle: with rubberized clamping handle
Pressure plate: with ball joint and non-slip rubber pad

Weight
net weight : 2.1 kg

★★★★★
