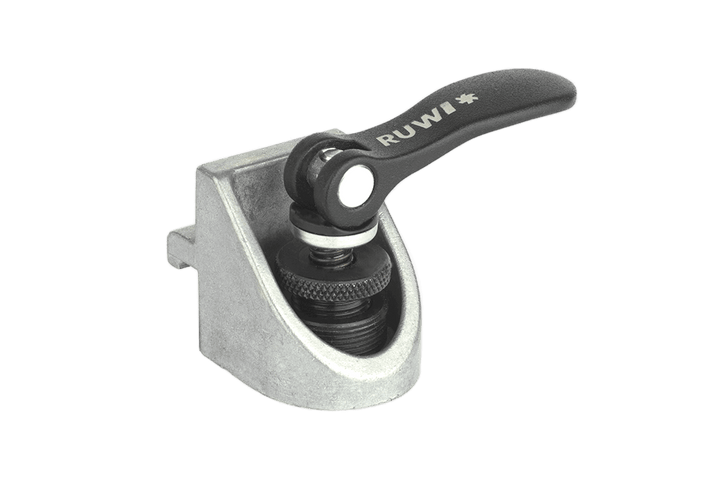

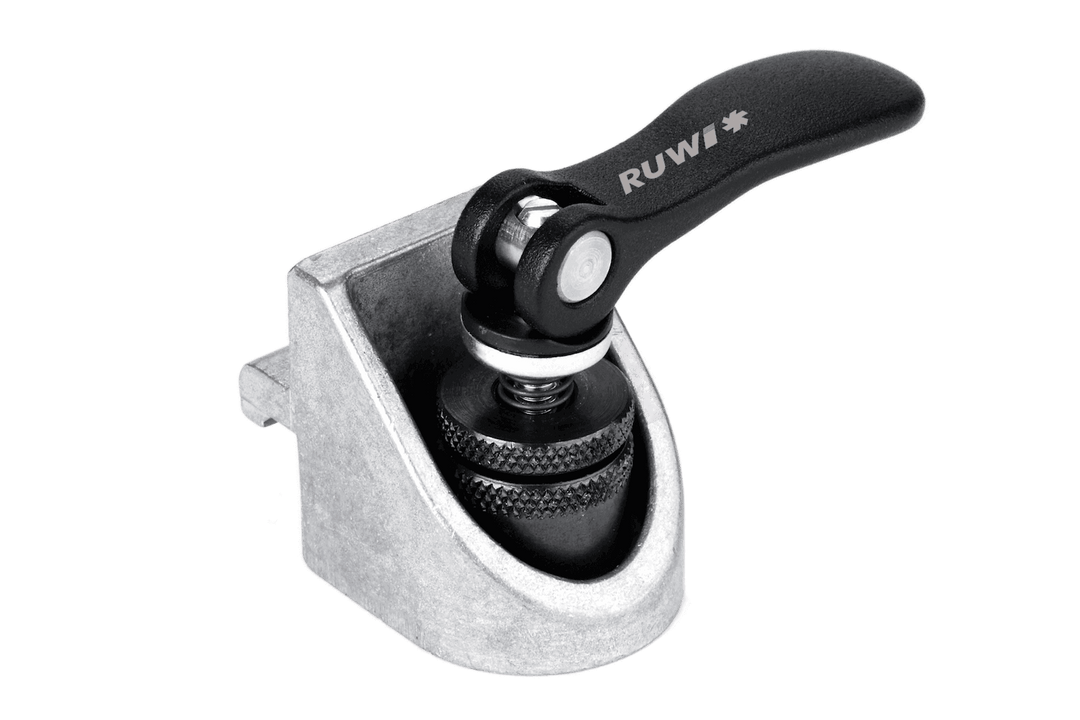

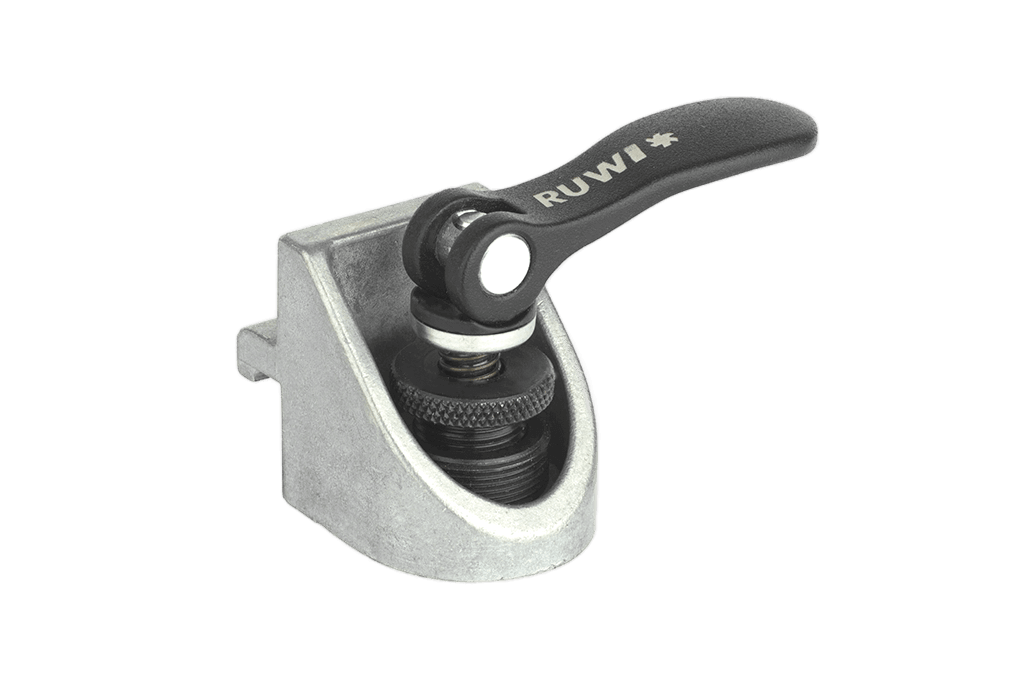

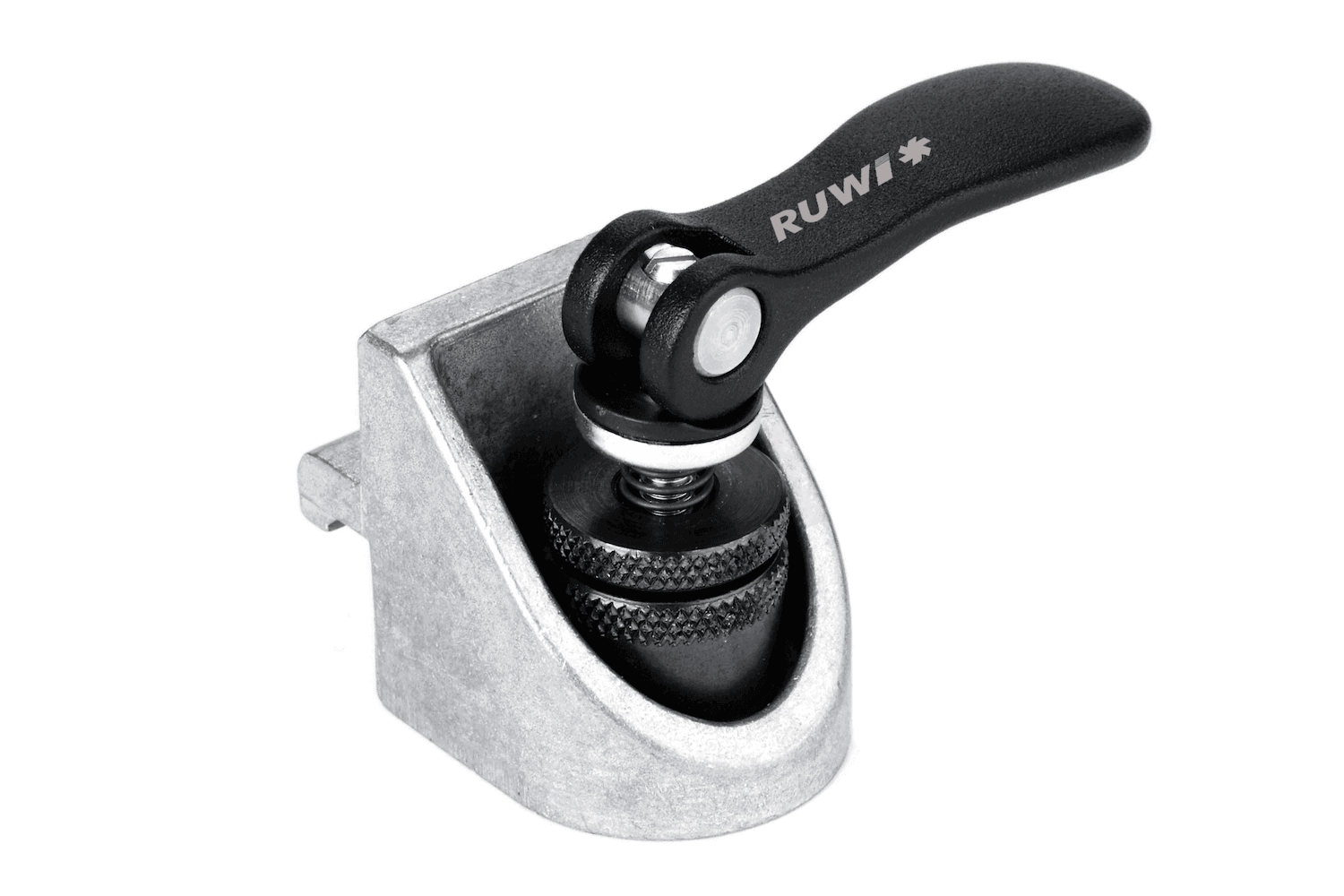

RUWI Clamping bracket with quick-release mechanism for slot, freestanding mount with black eccentric lever

RUWI Clamping bracket with quick-release fastener for slot, mounted at the right-angle intersection of two aluminum profiles

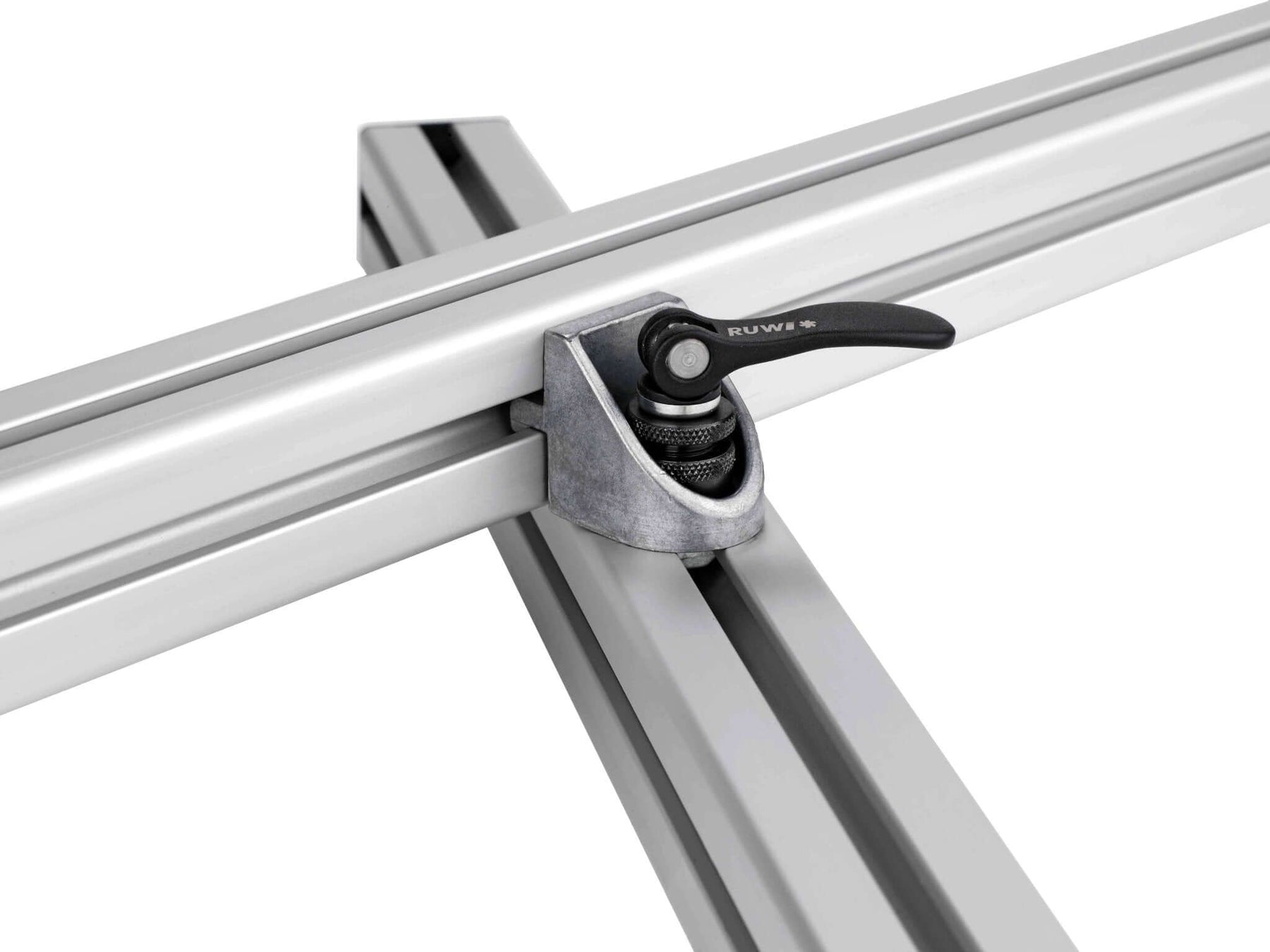

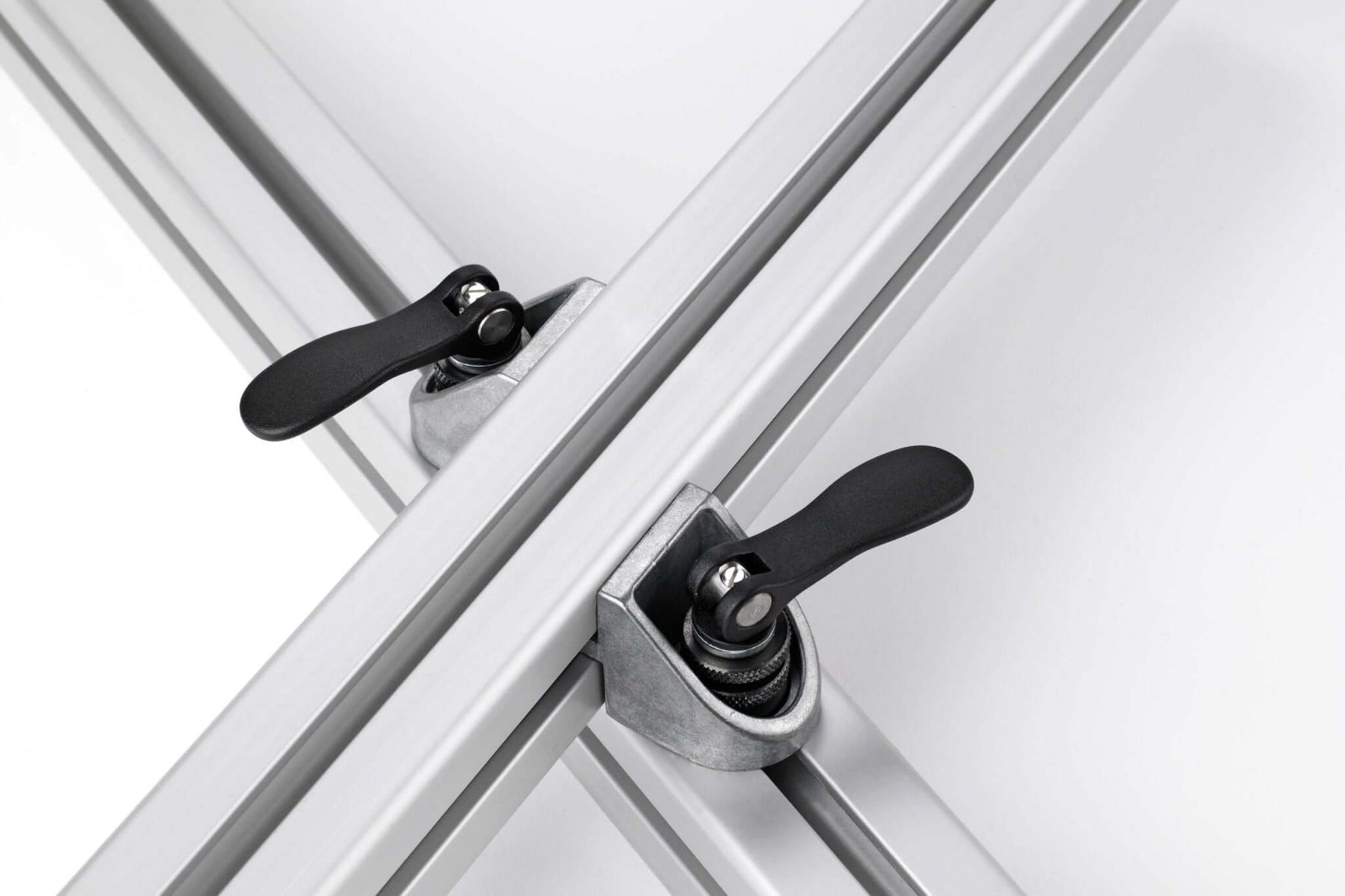

RUWI Clamping Bracket with Quick-Release Clamp for slot; two brackets connect crossed aluminum profiles

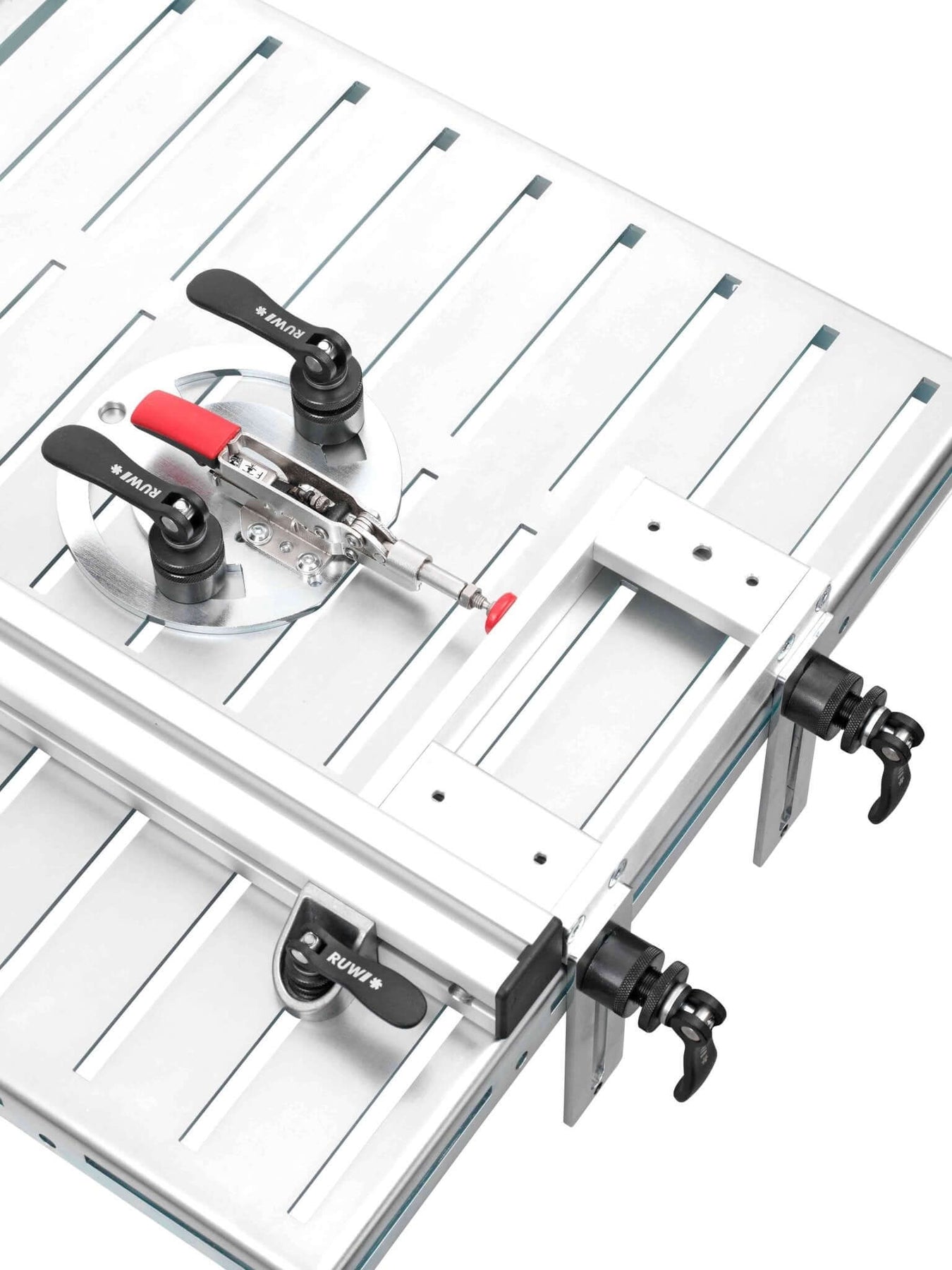

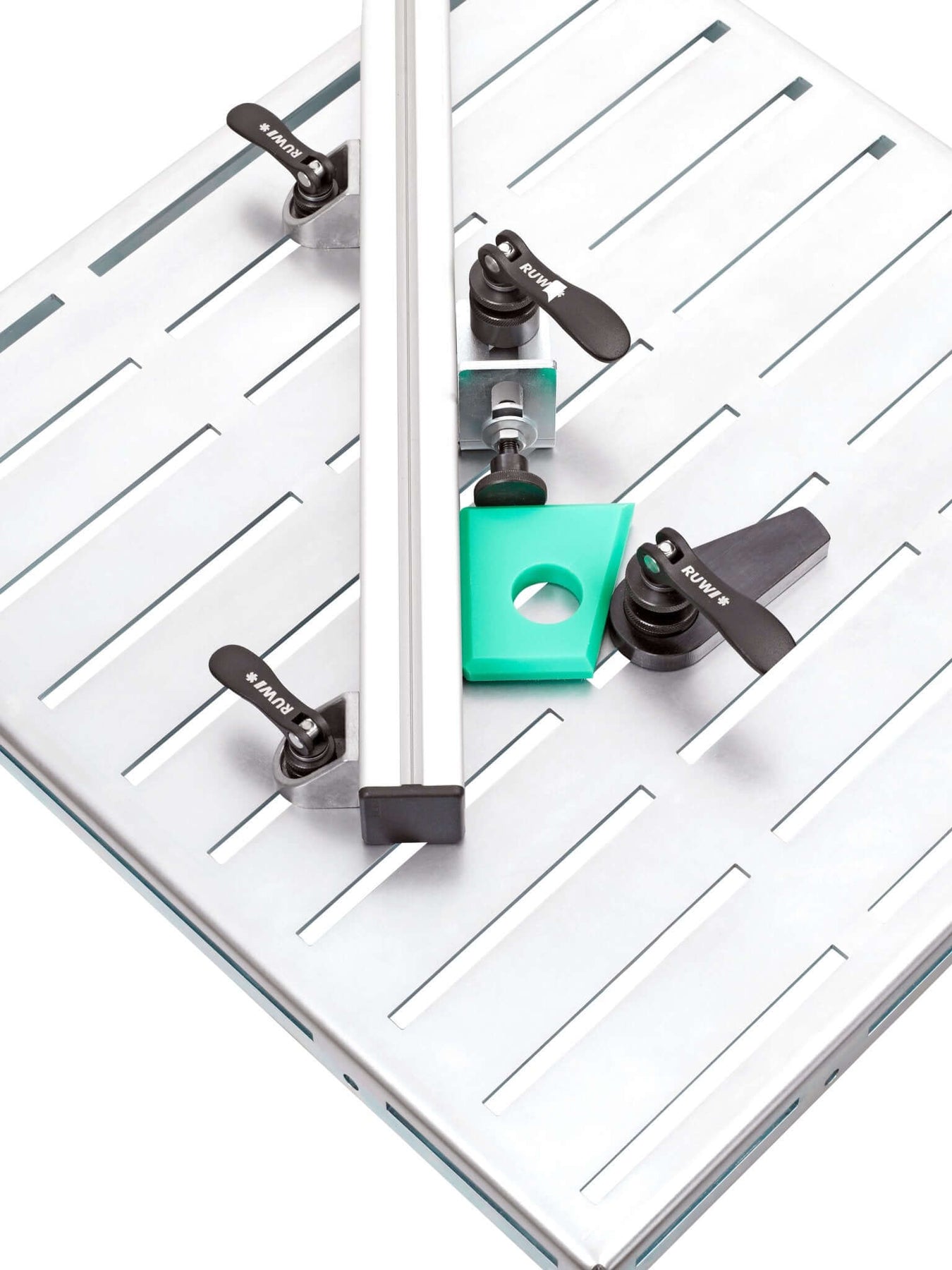

RUWI Clamping bracket with quick-release fastener for slot; two brackets secure the RUWI horizontal toggle clamp with a round adapter plate

Clamping bracket with quick-release mechanism for slot

€38,77

Includes sales tax Plus shipping costs

Calculated for your business

Deductible immediately in the year of purchase

Less than €800 net: The full amount reduces your profit in the year of purchase · €38.77 gross

Calculate using your tax rate →Which clamp holds your workpiece? Go to the finder →

Guidance on a 30% tax rate and the purchase of a business—not tax advice.

Quick-Release Size

slot 6 Item

slot 8 Item

slot 8 Bosch

Artisan Quality

By woodworking professionals, for woodworking professionals

Faster and More Reliable Shipping

In stock – delivered to your workshop in 3–5 business days
Out of stock – coming back soon

Our tools are shipped via DPD and DHL and usually arrive within 3–5 days. You'll receive a tracking number via email.

Our larger tools are shipped via Schenker and will arrive within a few business days. Upon request, the carrier can also deliver on a date of your choice, and you can coordinate the details with them by phone.

Packaging Dimensions
• Shipped in a cardboard box via DHL or DPD
• Dimensions: 190 × 140 × 50 mm

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

Accessories

[{"id":54988767396220,"title":"Nut 6 Item","option1":"Nut 6 Item","option2":null,"option3":null,"sku":"RUWI27600-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Klemmwinkel mit Schnellspanner für Nut - Nut 6 Item","public_title":"Nut 6 Item","options":["Nut 6 Item"],"price":3877,"weight":200,"compare_at_price":null,"inventory_management":"shopify","barcode":"4260461083837","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54988767428988,"title":"Nut 8 Item","option1":"Nut 8 Item","option2":null,"option3":null,"sku":"RUWI27650-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Klemmwinkel mit Schnellspanner für Nut - Nut 8 Item","public_title":"Nut 8 Item","options":["Nut 8 Item"],"price":4442,"weight":160,"compare_at_price":null,"inventory_management":"shopify","barcode":"4260461083844","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54988767461756,"title":"Nut 8 Bosch","option1":"Nut 8 Bosch","option2":null,"option3":null,"sku":"RUWI27650-4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Klemmwinkel mit Schnellspanner für Nut - Nut 8 Bosch","public_title":"Nut 8 Bosch","options":["Nut 8 Bosch"],"price":4442,"weight":150,"compare_at_price":null,"inventory_management":"shopify","barcode":"4260461084186","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Which clamp holds your workpiece in place?

The Clamp Finder guides you from the workpiece to the right clamp.

Launch Finder →

The RUWI clamping bracket with quick-release mechanism creates a tool-free clamping and connection point in your aluminum profiles. Using the eccentric lever, the integrated slot nut clamps into the profile groove—flip the lever, and the bracket locks securely in place with approximately 3 kN of force; flip the lever back, and you can reposition it. This allows you to position, secure, and connect profiles without using screws.

The hinge is available in two sizes: for slot 6 (30-series profiles, 34 mm overall height, 6 mm adjustment height) and for slot 8 (40-series profiles, 44 mm and 8 mm). The body is made of die-cast zinc and burnished steel; the eccentric lever is made of powder-coated cast aluminum.

Here's how to use it

Positioning and securing profiles: In fixture construction, the angle moves along with the fixture—simply flip the lever instead of threading and screwing in a slot nuts .
Reinforcing the frame: In structures with varying configurations, the angle bracket connects the profiles at right angles and keeps the structure in shape.
Assembly aid for prototypes: Structures made of aluminum profiles are created and modified on the fly—the connection points simply adjust accordingly.

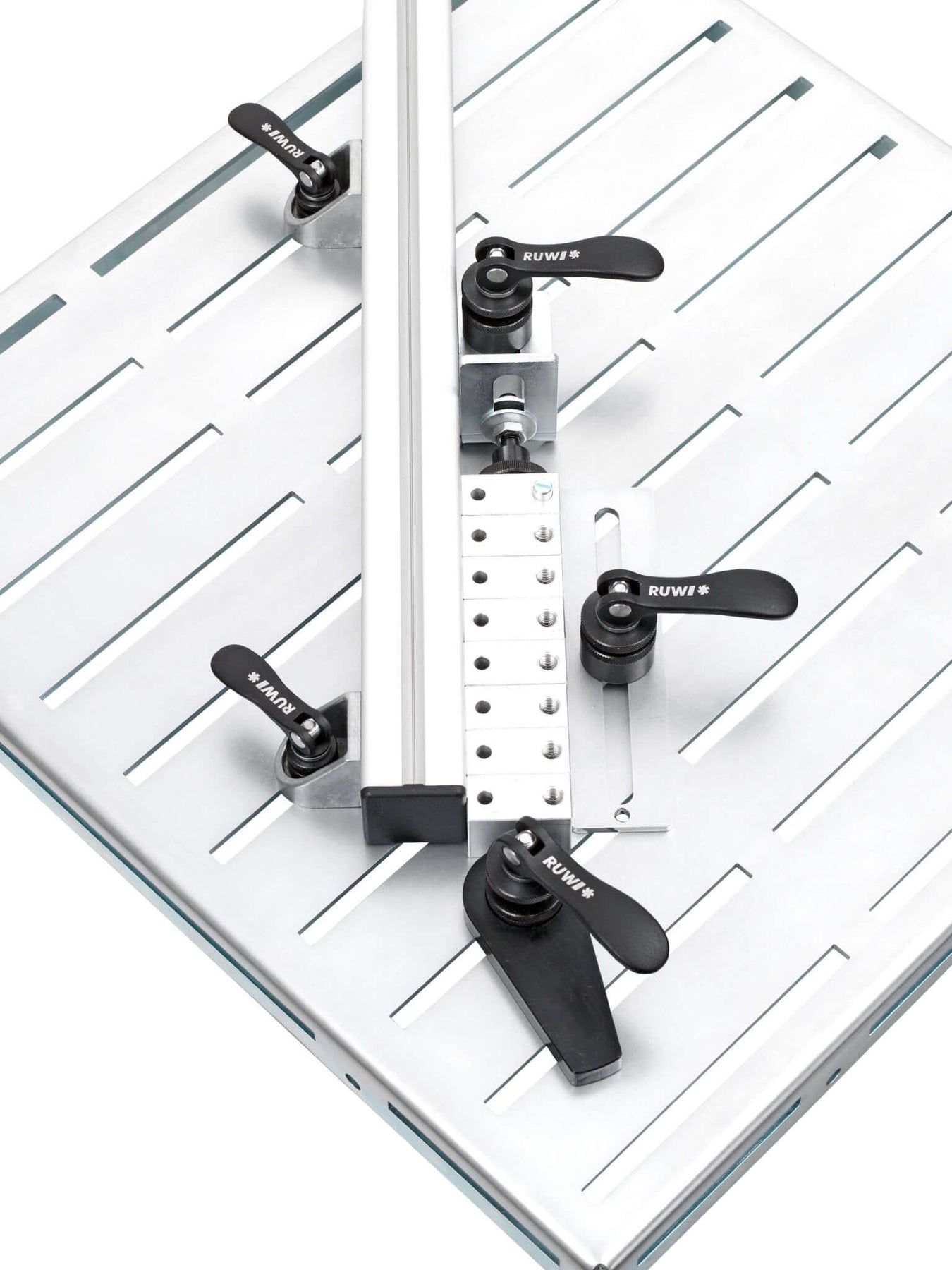

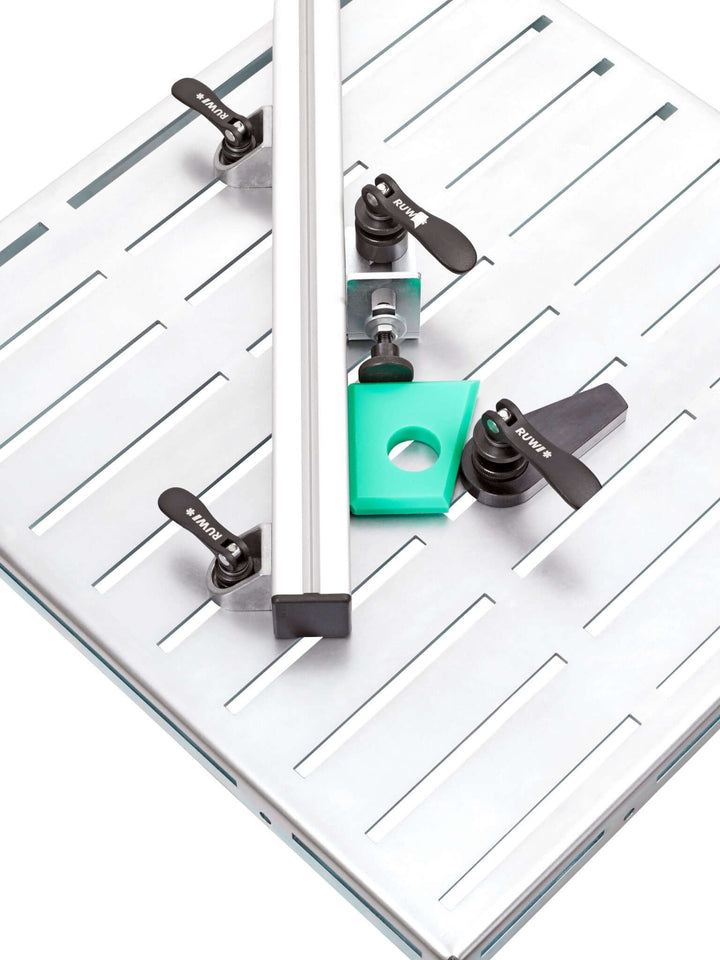

Working on workbenches: The bracket can also be clamped into workbenches and clamping plates—serving as a stop and mounting point on the surface.

Does this fit your aluminum profile?

When ordering, select based on groove width and profile system: slot 6 Item (30-series system), slot 8 Item, or slot 8 Bosch (40-series system)—Item and Bosch have differently shaped slots even with the same groove width; the groove shape is the determining factor, not just the width. The quick-release mechanism is consistent across the series; all sizes are shown in the quick-release overview.

Downloads

Clamping Bracket Instructions (PDF)

All the details

Dimensions
overall height : 34 mm (RUWI27600-1, slot 6) or 44 mm (RUWI27650-1, RUWI27650-4, slot 8 to 10)
adjustment height : 6 mm (RUWI27600-1) or 8 mm (RUWI27650-1, RUWI27650-4)

Material
Materials: Die-cast zinc and burnished steel
Eccentric lever: Cast aluminum, powder-coated

Compatibility
Profiles: System 30, slot 6 (Item and Item-compatible) for RUWI27600-1
Profiles: System 40 profiles (Item and Item-compatible), slot 8 to 10 for RUWI27650-1
Profiles: System 40 profiles (Bosch and Bosch-compatible), slot 8 to 10 for RUWI27650-4
slot nut : for 6 mm groove width for RUWI27600-1
Tables: Groove tables and clamping plates

clamping force
clamping force: approx. 3 kN

Weight
Weight: approx. 200 g (slot 6) or approx. 150 g (slot 8)

★★★★★
