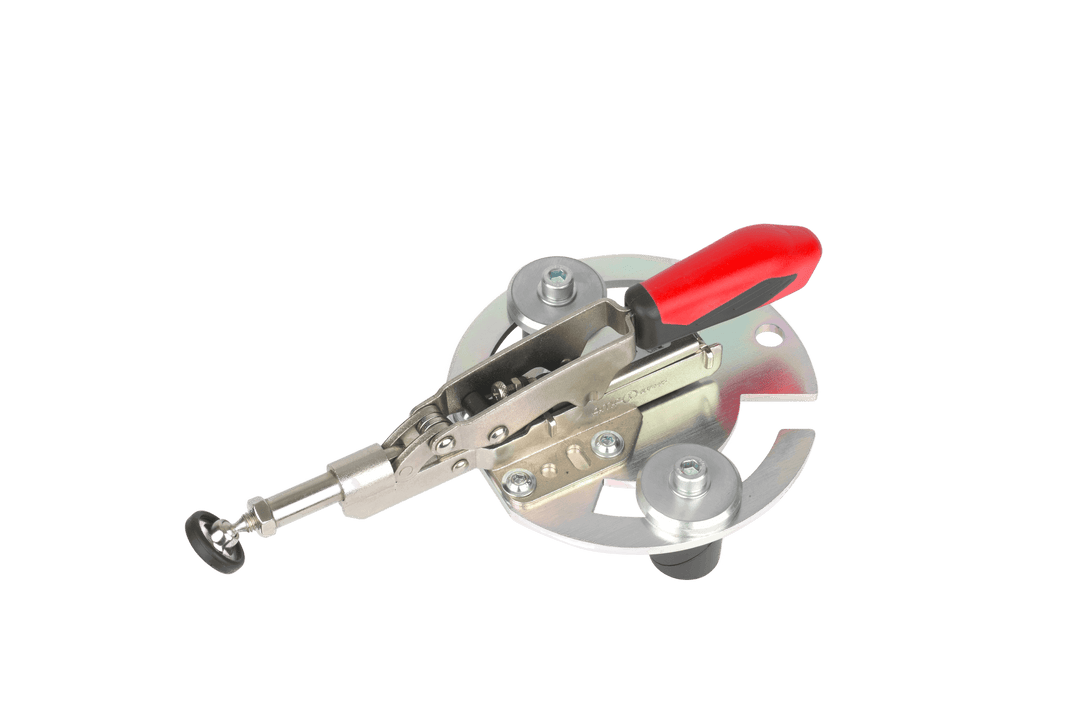

RUWI Horizontal clamp with adapter plate and clamping bolt, free-standing clamp with pressure spindle and red handle

Horizontal toggle clamp with adapter plate and clamping bolt Ø 16 and Ø 28 mm

RUWI21148

€135,70
/
Includes VAT Plus shipping costs

€114.03 net

Size
  • Made in Germany
  • Developed by carpenters in Fluorn-Winzeln
  • Spare parts are always available
  • In stock – Delivery time: 1–3 business days
  • Reordered – Delivery date by phone: +49 7402 8414

Take a look first, then decide

At our location in Fluorn-Winzeln, via video, or at a partner's location. Free of charge, with no pressure to buy. Request an appointment

A carpenter is on the phone: +49 7402 8414

• 1 × horizontal toggle clamp
• 1 × round adapter plate
• 2 × clamping bolts Ø 16 mm or Ø 28 mm with washer, depending on the model

Take a look first, then decide

Not sure if this is a good fit for your workshop? During our workshop consultation, we’ll take a look at it together—in person, via video, or at a partner location. It’s free, with no pressure to buy.

Schedule a workshop consultation
Prefer to ask directly? +49 7402 8414

Smaller items are shipped via DHL or DPD, and you’ll receive tracking information by email. lifting tables and router tables are shipped via Schenker. Upon request, the carrier will come at a time that’s convenient for you—you can arrange this by phone.

The delivery time is listed above the price, next to the stock status. If an item is currently out of stock, we'll let you know the delivery date over the phone: +49 7402 8414. If there's a delay, we'll contact you in advance.

Packaging Dimensions
• Shipped in a cardboard box via DHL or DPD
• Dimensions: 315 × 225 × 140 mm

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

Accessories

The RUWI horizontal toggle clamp with adapter plate presses your workpiece horizontally against a stop or a second workpiece—the version designed for the 16-mm hole grid. Using two clamping bolts, you can insert it into the 16-mm holes on welding tables and clamping plates and tighten it with the hex key—two anchor points keep it from twisting, even when it’s applying lateral pressure. The round adapter plate (Ø 140 mm) with slotted holes allows you to freely position the pressure point.

The swivel pad lies flat even on sloped and uneven surfaces, and the clamping pressure is adjustable. The stroke compensation accommodates up to 35 mm, 13 mm of which automatically without readjustment—with a length of 253 mm, the clamp can also reach clamping points further inside.

Here's how to use it

  • Securing assemblies for tack welding: two parts pressed against each other or against a stop—the joint is gap-free before the first spot is set.
  • Clamping beveled edges: the swivel pad lies flat against the contour—the pressure is applied to the surface, not the edge.
  • Series without readjustment: the 13 mm automatic stroke compensation accommodates varying part dimensions—open the lever, change the part, close the lever.
  • Set the pressure point freely: the slotted holes in the adapter plate let you slide the clamp continuously between the grid holes—the pressure is applied exactly where it should be.

Does this go with your welding table?

The two clamping bolts Ø 16 mm fit into welding tables and clamping plates with a 16 mm hole grid. For the Ø 28 grid of the RUWI welding tables, there is the horizontal toggle clamp with a clamping bolt; the workpiece is held from above by the vertical toggle clamp with adapter plate Ø 16. An overview of clamping devices and tables is provided by the RUWI welding tables.

All the details

Dimensions
Length: 253 mm
Adapter plate: round, Ø 140 mm, with slotted holes
Weight: 1.2 kg

Function
Stroke compensation: up to 35 mm, automatic 13 mm
Design: horizontal toggle clamp with swivel pad, pressure point freely positionable

Clamping system
Clamping bolt: Ø 16 mm (RUWI21148) or Ø 28 mm (RUWI21151)
Hole grid: Ø 16 mm or Ø 28 mm depending on model (material thickness 4 mm or greater)

★★★★★
