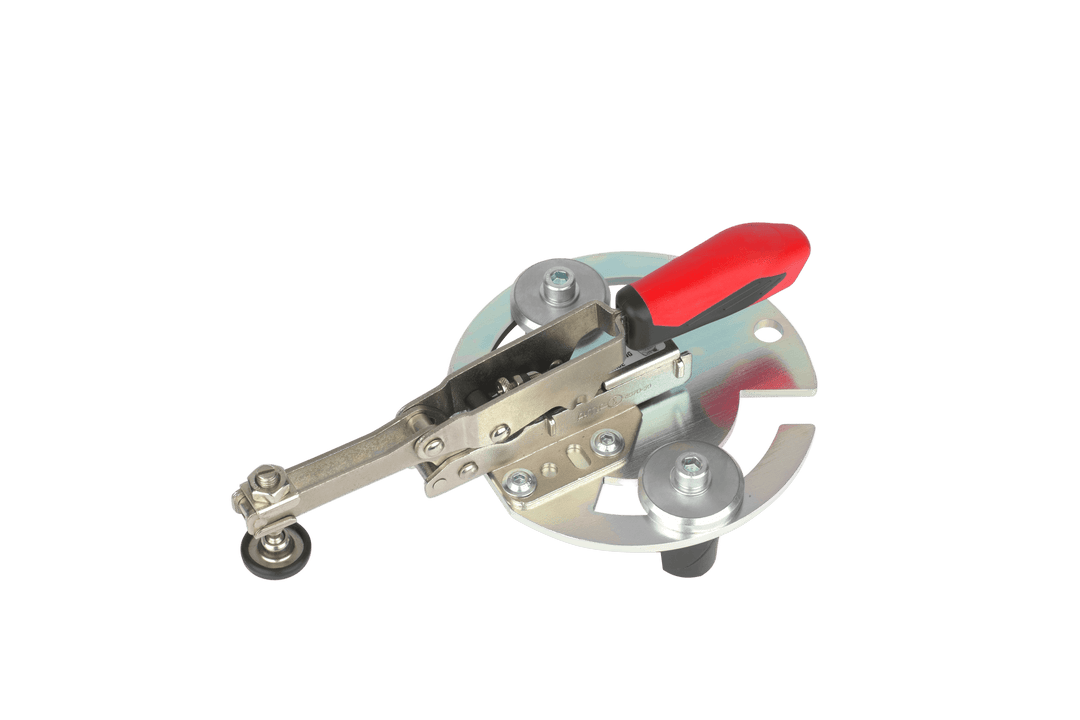

RUWI vertical toggle clamp with adapter plate and clamping bolt Ø 16 mm, cutter with red clamping lever

Vertical toggle clamp with adapter plate and clamping bolt Ø 16 mm

RUWI21149

€138,66
/
Includes VAT Plus shipping costs

€116,52 netto

  • Made in Germany
  • Developed by carpenters in Fluorn-Winzeln
  • Spare parts are always available
  • In stock – Delivery time: 1–3 business days
  • Reordered – Delivery date by phone: +49 7402 8414

Take a look first, then decide

At our location in Fluorn-Winzeln, via video, or at a partner's location. Free of charge, with no pressure to buy. Request an appointment

A carpenter is on the phone: +49 7402 8414

• 1 × vertical toggle clamp
• 1 × round adapter plate
• 2 × clamping bolts Ø 16 mm or Ø 28 mm with washer, depending on the model

Take a look first, then decide

Not sure if this is a good fit for your workshop? During our workshop consultation, we’ll take a look at it together—in person, via video, or at a partner location. It’s free, with no pressure to buy.

Schedule a workshop consultation
Prefer to ask directly? +49 7402 8414

Smaller items are shipped via DHL or DPD, and you’ll receive tracking information by email. lifting tables and router tables are shipped via Schenker. Upon request, the carrier will come at a time that’s convenient for you—you can arrange this by phone.

The delivery time is listed above the price, next to the stock status. If an item is currently out of stock, we'll let you know the delivery date over the phone: +49 7402 8414. If there's a delay, we'll contact you in advance.

Packaging Dimensions
• Shipped in a cardboard box via DHL or DPD
• Dimensions: 315 × 225 × 140 mm

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

Accessories

The RUWI vertical toggle clamp with adapter plate secures your workpiece from above on the welding table—the version designed for the 16-mm hole grid. Using two clamping bolts, you can insert it into the 16-mm holes in welding tables and clamping plates and tighten it with the hex key—two anchor points keep it from twisting, even when lateral forces are applied. The round adapter plate (Ø 140 mm) with slotted holes allows you to freely position the pressure point.

The spindle-mounted swivel pad lies flat even on sloped surfaces, and the clamping pressure is adjustable. The stroke compensation accommodates material thicknesses up to 40 mm, with 35 mm of that range covered automatically without readjustment—with a clamping range of 40 mm and a length of 244 mm, the clamp easily spans panels, frames, and individual parts.

Here's how to use it

  • Hold down while tacking: the workpiece rests firmly on the table; keep both hands on the torch and the filler material.
  • Clamping slanted and uneven parts: the swivel pad lies flat against the contour—the pressure is applied vertically to the workpiece, not to the edge.
  • Batches without readjustment: the 35 mm automatic stroke compensation accommodate varying material thicknesses—open the lever, change the part, close the lever.
  • Set the pressure point freely: the slotted holes in the adapter plate let you slide the clamp continuously between the grid holes—the pressure is applied directly to the joint, not beside it.

Does this go with your welding table?

The two clamping bolts Ø 16 mm fit into welding tables and mounting plates with a 16 mm hole grid. For the Ø 28 grid of the RUWI welding tables, the same model is available in an Ø 28 version; if a single anchor point is sufficient, the version with one clamping bolt is the slimmer solution.

The horizontal toggle clamp presses the workpiece sideways against a stop; the RUWI welding tables give the overview of clamps and tables.

All the details

Dimensions
Length: 244 mm
Adapter plate: Ø 140 mm
Net weight: approx. 1.2 kg

Function
Clamping range: 40 mm
Stroke compensation: up to 40 mm, automatically 35 mm

Clamping system
Clamping bolts: 2 × Ø 16 mm (RUWI21149) or 2 × Ø 28 mm (RUWI21152)
Hole grid: Ø 16 mm or Ø 28 mm depending on model (material thickness 4 mm and up)

★★★★★
