Name: Schnellspanner ø 15 mm mit Außengewinde und Klemmutter für Nut
Brand: RUWI
SKU: RUWI27500-1
Price: 29.82 EUR
Availability: InStock

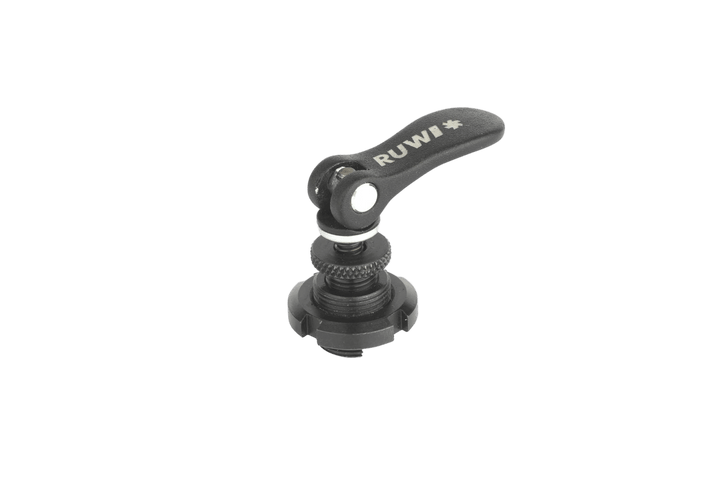

RUWI Quick-release lever with external thread, with a visible threaded shaft beneath the clamping lever

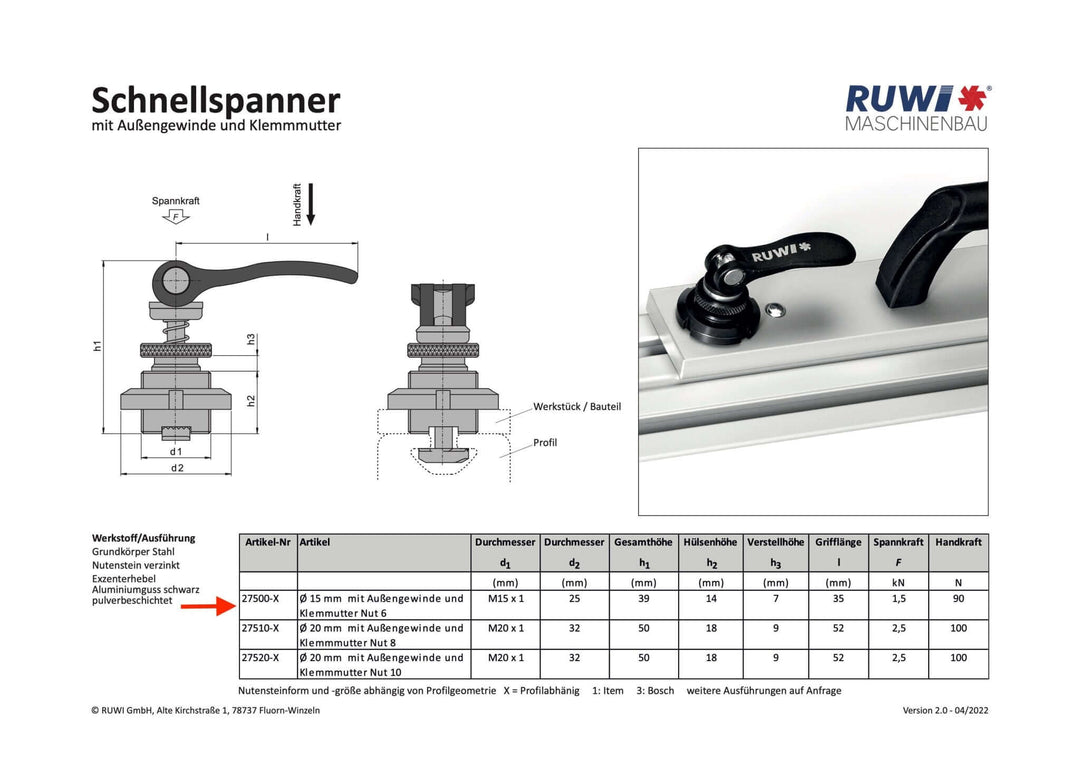

RUWI Quick-release clamp with external thread, technical drawing with dimension table and mounting hole

Quick-release clamp, 15 mm diameter, with external thread and locking nut for slot

€29,82

Includes sales tax Plus shipping costs

Calculated for your business

Deductible immediately in the year of purchase

Less than €800 net: The full amount reduces your profit in the year of purchase · €29.82 gross

Calculate using your tax rate →

Guidance on a 30% tax rate and the purchase of a business—not tax advice.

Quick-Release Size

slot 6 Item

slot 8 Item

slot 8 Bosch

Made in Germany

By woodworking professionals, for woodworking professionals

Spare parts are always available

In stock – delivered to your workshop in 3–5 business days
Out of stock – coming back soon

Take a look first, then decide

Not sure if this is a good fit for your workshop? During our workshop consultation, we’ll take a look at it together—in person, via video, or at a partner location. It’s free, with no pressure to buy.

Schedule a workshop consultation

Prefer to ask directly? +49 7402 8414

Our tools are shipped via DPD and DHL and usually arrive within 3–5 days. You'll receive a tracking number via email.

Our larger tools are shipped via Schenker and will arrive within a few business days. Upon request, the carrier can also deliver on a date of your choice, and you can coordinate the details with them by phone.

Packaging Dimensions
• Shipped in a cardboard box via DHL or DPD
• Dimensions: 190 × 140 × 50 mm

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

Accessories

[{"id":55195211465084,"title":"Nut 6 Item","option1":"Nut 6 Item","option2":null,"option3":null,"sku":"RUWI27500-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Schnellspanner ø 15 mm mit Außengewinde und Klemmutter für Nut - Nut 6 Item","public_title":"Nut 6 Item","options":["Nut 6 Item"],"price":2982,"weight":100,"compare_at_price":null,"inventory_management":"shopify","barcode":"4260461083790","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":55200517620092,"title":"Nut 8 Item","option1":"Nut 8 Item","option2":null,"option3":null,"sku":"RUWI27510-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Schnellspanner ø 15 mm mit Außengewinde und Klemmutter für Nut - Nut 8 Item","public_title":"Nut 8 Item","options":["Nut 8 Item"],"price":3428,"weight":100,"compare_at_price":null,"inventory_management":"shopify","barcode":"4260461083806","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":55200517652860,"title":"Nut 8 Bosch","option1":"Nut 8 Bosch","option2":null,"option3":null,"sku":"RUWI27510-3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Schnellspanner ø 15 mm mit Außengewinde und Klemmutter für Nut - Nut 8 Bosch","public_title":"Nut 8 Bosch","options":["Nut 8 Bosch"],"price":3428,"weight":100,"compare_at_price":null,"inventory_management":"shopify","barcode":"4260461083998","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

The RUWI quick-release clamp with external thread and clamping nut is the screw-on version of the RUWI aluminum profile quick-release clamps: While the standard version slides into the profile groove using a slot nut , this version is securely screwed in place via its external thread—for clamping points that remain permanently in place. Clamping is the same as for the entire series tool-free: Flip the eccentric lever 90 degrees, and the workpiece is securely clamped—move the lever back, and it is released.

There are two sizes: Ø 15 mm with M15 × 1 thread for slot 6 (Item) and Ø 20 mm with M20 × 1 thread for slot 8—where they are listed separately for Item and Bosch profiles, since both systems have differently shaped slots even though they have the same groove width. The clamping force is approximately 2 kN (Ø 15) or 3 kN (Ø 20), generated with minimal manual force on the lever. The base body is made of steel, and the eccentric lever is made of powder-coated cast aluminum, manufactured in Germany.

Here's how to use it

Setting up fixed clamping points: The clamping nut permanently secures the clamp in place—the clamping point remains in place even when workpieces change with each cycle.
Fixture and Equipment Construction: Clamp and release stops and component holders in seconds—the lever replaces the setup tool.
Mechanical Engineering and Prototyping: Frequently changing assemblies on bolted, recurring positions.
Exhibition Stand Construction: Quick assembly and disassembly of aluminum profile structures—the clamping points are in the same positions for every setup.

Does this fit your aluminum profile?

Your profile will tell you which groove width you need: slot 6 usually fits 20 and 30 profiles, slot 8 fits 40 profiles. When ordering, select the appropriate item: slot 6 (Ø 15), slot 8, or slot 8 Bosch (both Ø 20)—the groove shape is what matters, not just the width. The overall height creates a shallow groove: 39 mm for Ø 15, 50 mm for Ø 20, with 7 or 9 mm adjustment height for the workpiece thickness.

If you want the clamping point to move along with the assembly, choose the version with slot nut; larger sizes and other groove widths are listed in the quick-release overview.

Downloads

All the details

Dimensions
Base body: Ø 15 mm (RUWI27500-1) or Ø 20 mm (RUWI27510-1, RUWI27510-3)
overall height: 39 mm (Ø 15 mm) or 50 mm (Ø 20 mm)
adjustment height: 7 mm (Ø 15 mm) or 9 mm (Ø 20 mm)

Thread
External thread: M15 × 1 (Ø 15 mm) or M20 × 1 (Ø 20 mm), with clamping nut

Compatibility
slot: 6 (Item, Bosch, and compatible profiles) for Ø 15 mm, slot 8 to 10 for Ø 20 mm (RUWI27510-1 compatible with Item profiles, RUWI27510-3 compatible with Bosch profiles)

clamping force
clamping force: approx. 2 kN (Ø 15 mm) or approx. 3 kN (Ø 20 mm)

Material
Main body: Steel
Eccentric lever: Cast aluminum, powder-coated

★★★★★
