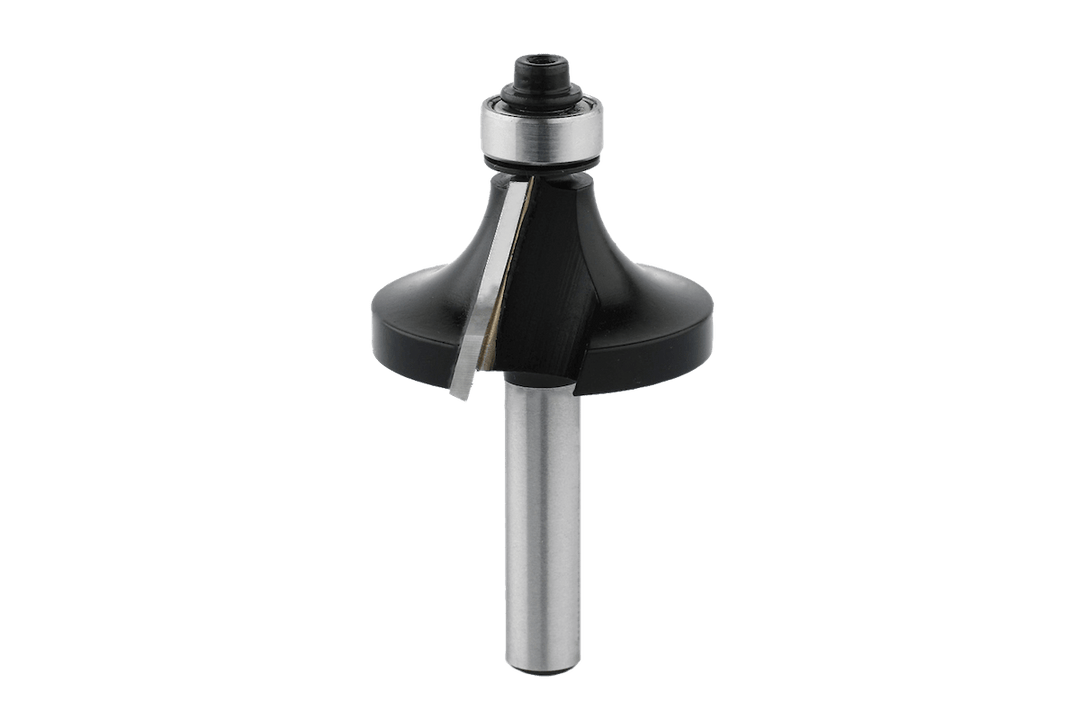

RUWI R12.7 rounding cutter with guide bearing, cut out

Roundover bit R12.7 with guide bearing

RUWI30212

Regular price€58,86
/
Includes VAT Plus shipping costs

€49.46 (net)

  • Artisan Quality
  • Advice from a Master Carpenter
  • Fast and Reliable Shipping
  • In stock – Delivery time: 1–3 business days
  • Reordered – Delivery date by phone: +49 7402 8414

Questions before you buy? A carpenter is available by phone: +49 7402 8414

1 × Roundover bit R12.7 with guide ball bearing

Smaller items are shipped via DHL or DPD, and you’ll receive tracking information by email. lifting tables and router tables are shipped via Schenker. Upon request, the carrier will come at a time that’s convenient for you—you can arrange this by phone.

The delivery time is listed above the price, next to the stock status. If an item is currently out of stock, we'll let you know the delivery date over the phone: +49 7402 8414. If there's a delay, we'll contact you in advance.

Packaging Dimensions
• Shipped in a cardboard box via DHL or DPD
• Dimensions: 190 × 140 × 50 mm

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

RUWI's R12.7 roundover bit rounds off wood edges with a 12.7-mm radius—the largest radius in the series—for generously rounded edges and the classic quarter-round. The guide ball bearing (Ø 12.7 mm) runs along the workpiece edge and guides the cutter even along curved contours for which no stop fits.

The router bit is double-edged and carbide-tipped (HW, Z2), right-hand rotation, with a Ø 38 mm tool diameter and 19 mm working length; shank Ø 8 mm, overall length 66 mm. It cuts softwood, hardwood, and laminated panels. If the ball bearing wears out, you can replace it—instead of replacing the entire router bit.

Here's how to use it

  • Smoothly rounding tabletops: the 12.7 radius transforms the sharp edge of the tabletop into a smooth, comfortable curve—even on curved tabletops, as the bearing follows the contour.
  • Shaping handrails and grip strips: two passes from both sides create the half-round profile—the grip surface fits comfortably in the hand.
  • Cutting a quarter-round profile: With full cutting depth, the R12.7 mills the classic quarter-round profile on moldings and frames.
  • Operating without a stop: The guide bearing provides guidance through curves and cutouts—the stop remains folded away.

Does this fit your router?

The shank requires an collet with a diameter of 8 mm. Important note regarding this head: With a diameter of 38 mm, the bit belongs in the router table and must run at reduced speed—this is mandatory for this diameter, not optional; the stepless control of the RUWI router tables sets the appropriate speed. It also runs on CNC machines.

R12.7 is the most pronounced radius in the series—for more subtle edges, the same design is available in radii ranging from R2 to R10 in the overview of RUWI milling tools.

All the details

Profile
Radius: 12.7 mm
Tool diameter: Ø 38 mm
Working length: 19 mm
Overall length: 66 mm

shank and guide bearing
Shank: Ø 8 mm, shaft length 32 mm
Guide bearing: Ball bearing Ø 12.7 mm, replaceable

Cutting edges and use
Cutting edges: Z2, carbide (HW), clockwise rotation
Materials: Softwood, hardwood, coated panels
Collet: Ø 8 mm required
Net weight: approx. 73 g

★★★★★
