horizontal toggle clamp clamping bolt 20 mm

Brief description

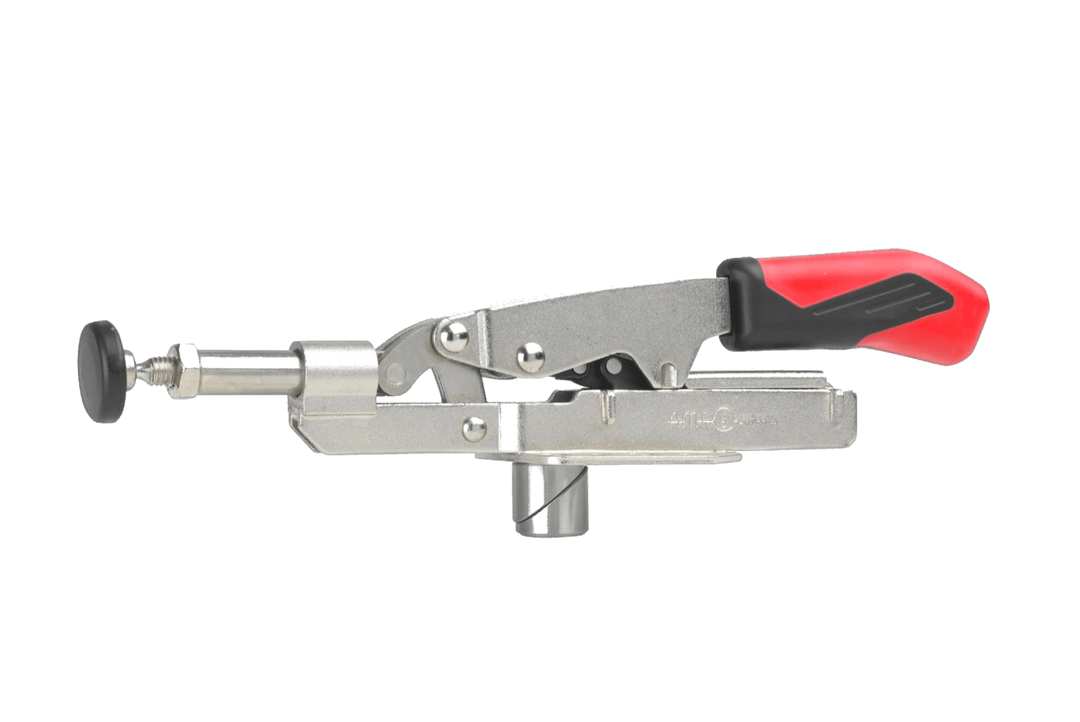

The RUWI horizontal toggle clamp your workpiece horizontally against a stop, a positioning angle a second workpiece—it’s the horizontal counterpart to the vertical toggle clamp. Using theclamping bolt an Allen screw (SW 6), you can secure it at any position along thehole grid. With a length of 253 mm, it can reach even the innermost clamping points.

The continuously adjustable compensation of up to 35 mm handles varying clamping widths, so you don't need to reconfigure anything. When you open it, the clamp automatically retracts 13 mm, releasing the workpiece – this speeds up changes when you're clamping many parts consecutively. It really shows its full potential when used with a stop: the stop defines the position, and the clamp securely holds the workpiece against it.

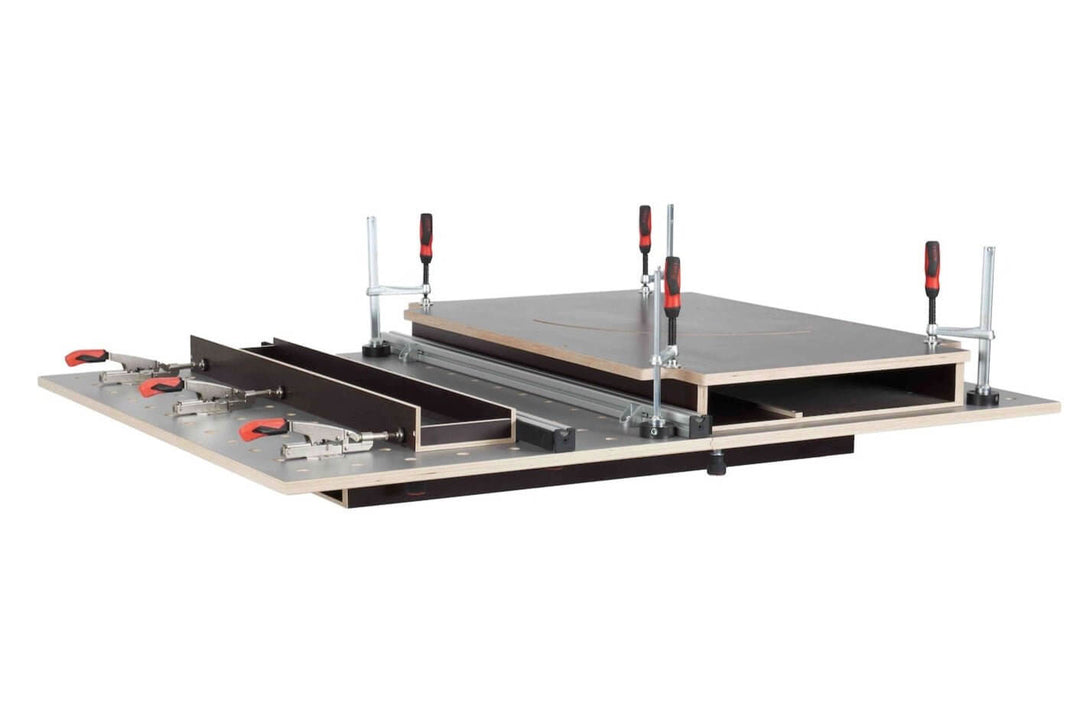

As a fixed counterweight, it pairs well with the positioning angle; from above, the vertical toggle clampholds it in place from above. The horizontal toggle clamp any RUWI lifting table any table with the 20-mm standard. You can find additional clamping accessories in lifting table.

Applications

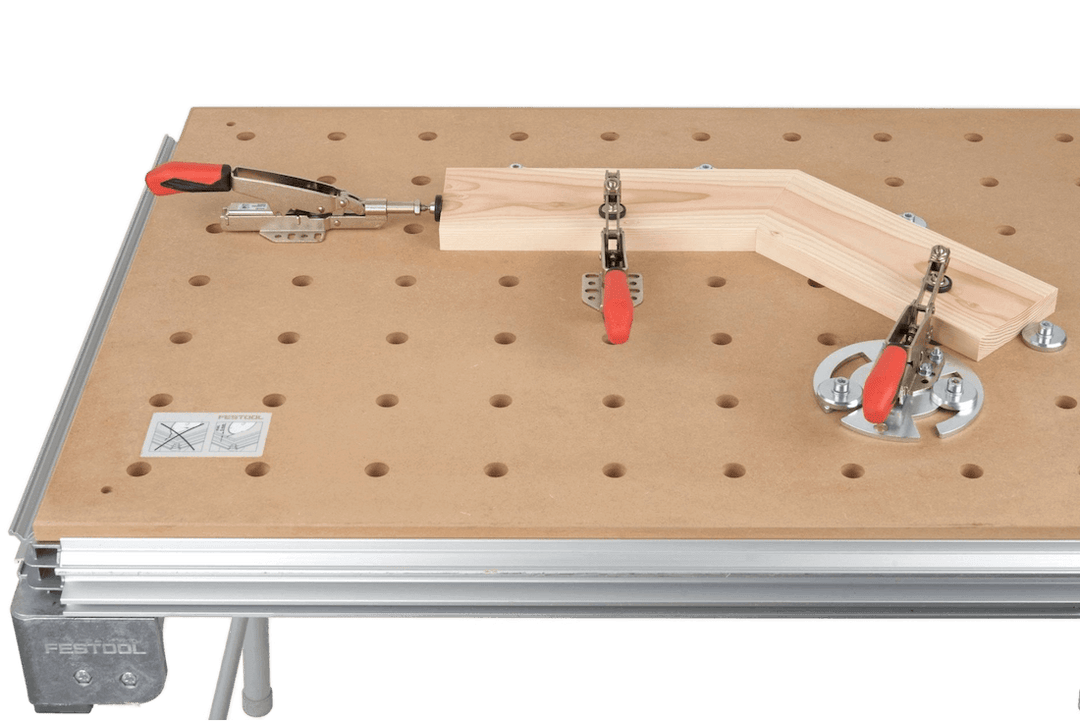

• Press workpieces horizontally against a stop, positioning angle a second workpiece
• Combine with positioning angle stop rail as a stop-and-clamping system
• Continuously adjustable compensation up to 35 mm – handles varying clamping widths without reconfiguring
• Automatic 13 mm retraction when opening – for quick workpiece changes

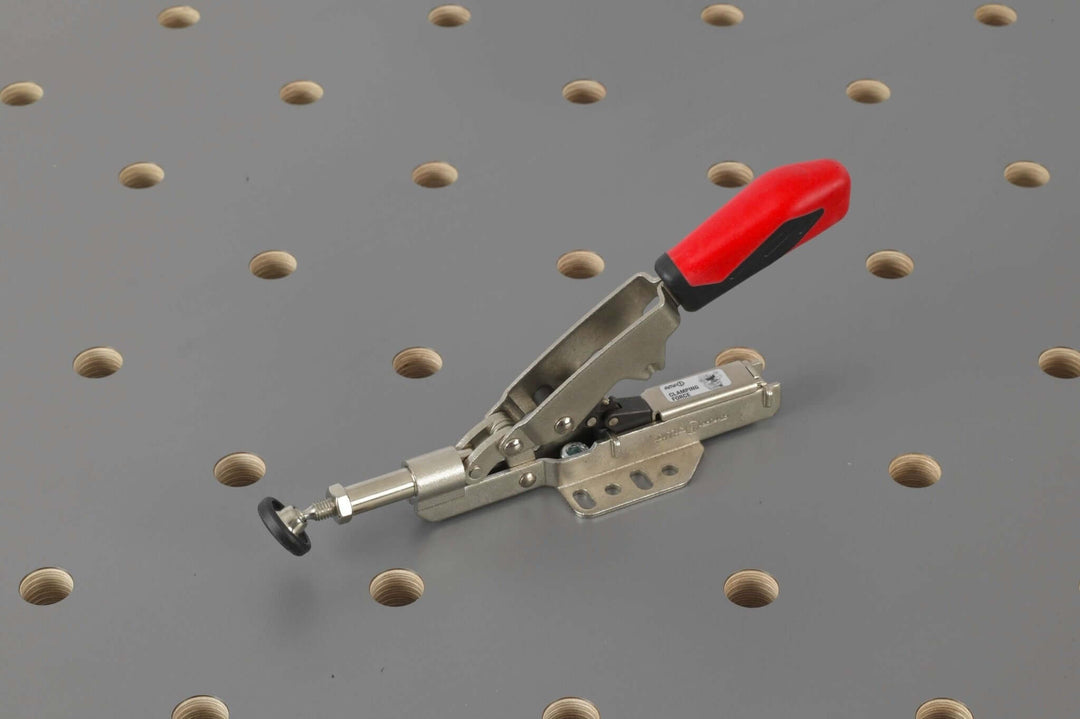

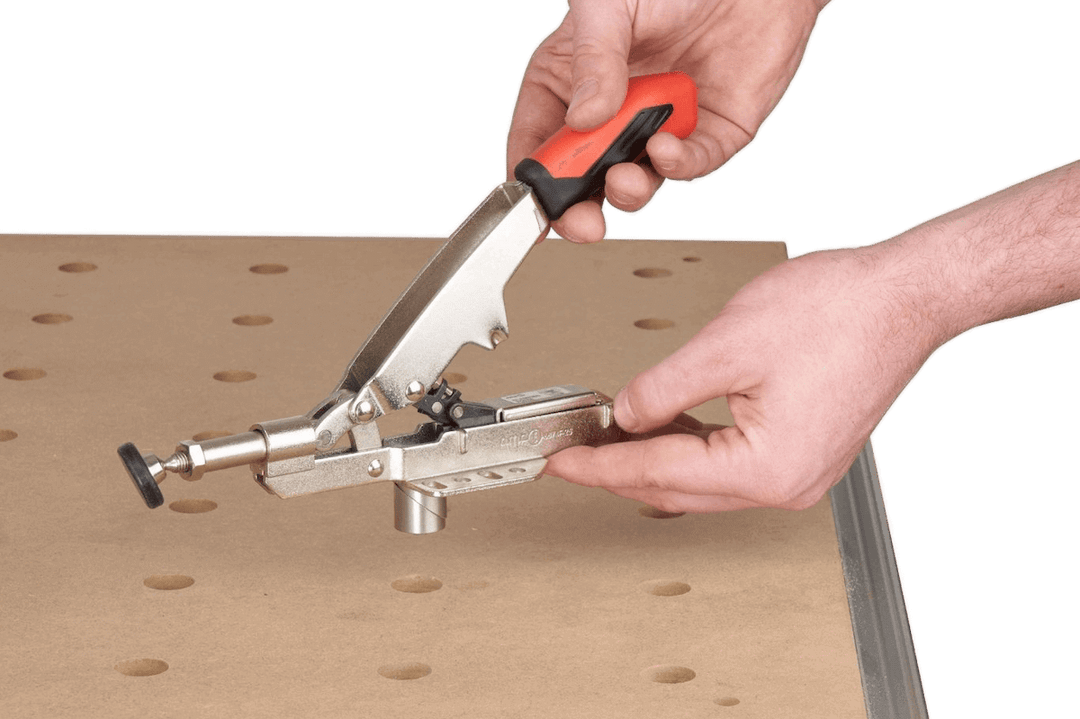

• Secure it using theclamping bolt an Allen screw (SW 6) in the 20-mm hole
• Compatible with any RUWI lifting table any table with a 20-mm standard

Downloads

RUWI Product Catalog 2026 (PDF)

All the details

• Dimensions and weight
- Length 253 mm
- net weight . net weight kg

• Clamping mechanism and function
- Stepless adjustment, max. adjustment 35 mm
- Automatic return of 13 mm upon opening
- For varying spans, compatible with thehole grid

• clamping bolt
- Stainless steel, Ø 20 mm, with Allen screw
