Name: Schnellspanner ø 20 mm Nut mit Außengewinde und Klemmutter für Nut 10
Brand: RUWI
SKU: RUWI27520-1
Price: 34.28 EUR
Availability: InStock

Quick-release clamp, 20 mm diameter, with external thread and locking nut for 10 mm groove

RUWI Quick release ø20 mm groove with external thread and clamping nut for groove 10 - RUWI I Tools for woodworking professionals

€34,28

incl. VAT plus shipping costs

Quick release size

Slot 10 Item

Slot 10 Bosch

Quality craftsmanship

From wood professionals for wood professionals

Fast and reliable shipping

Low stock - 1 still in stock
Reordered - back soon

Our tools are shipped by DPD and DHL and usually arrive within 3-5 days. You will receive shipment tracking by e-mail.

Our larger tools are shipped by Schenker and arrive within a few working days. On request, the shipping company can also come at a desired time and you can coordinate with the shipping company by telephone.

Packaging dimensions
- Packaging: In cardboard box, shipping by DHL or DPD

Scope of delivery
- 1 x quick release ø 20 mm with external thread and clamping nut for groove 10

Our tools and machines are built for long-term use. We only use high-quality components and have gained a lot of experience to avoid problems in the workshop. That's why we have no problems with warranty requests - even beyond the 2‑year warranty period. We are always looking for a good solution together.

We have 100% spare parts in stock.

Accessories

[{"id":54988758843772,"title":"Nut 10 Item","option1":"Nut 10 Item","option2":null,"option3":null,"sku":"RUWI27520-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Schnellspanner ø 20 mm Nut mit Außengewinde und Klemmutter für Nut 10 - Nut 10 Item","public_title":"Nut 10 Item","options":["Nut 10 Item"],"price":3428,"weight":100,"compare_at_price":null,"inventory_management":"shopify","barcode":"4260461084506","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54988758876540,"title":"Nut 10 Bosch","option1":"Nut 10 Bosch","option2":null,"option3":null,"sku":"RUWI27520-3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Schnellspanner ø 20 mm Nut mit Außengewinde und Klemmutter für Nut 10 - Nut 10 Bosch","public_title":"Nut 10 Bosch","options":["Nut 10 Bosch"],"price":3428,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":"4260461083950","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Brief description

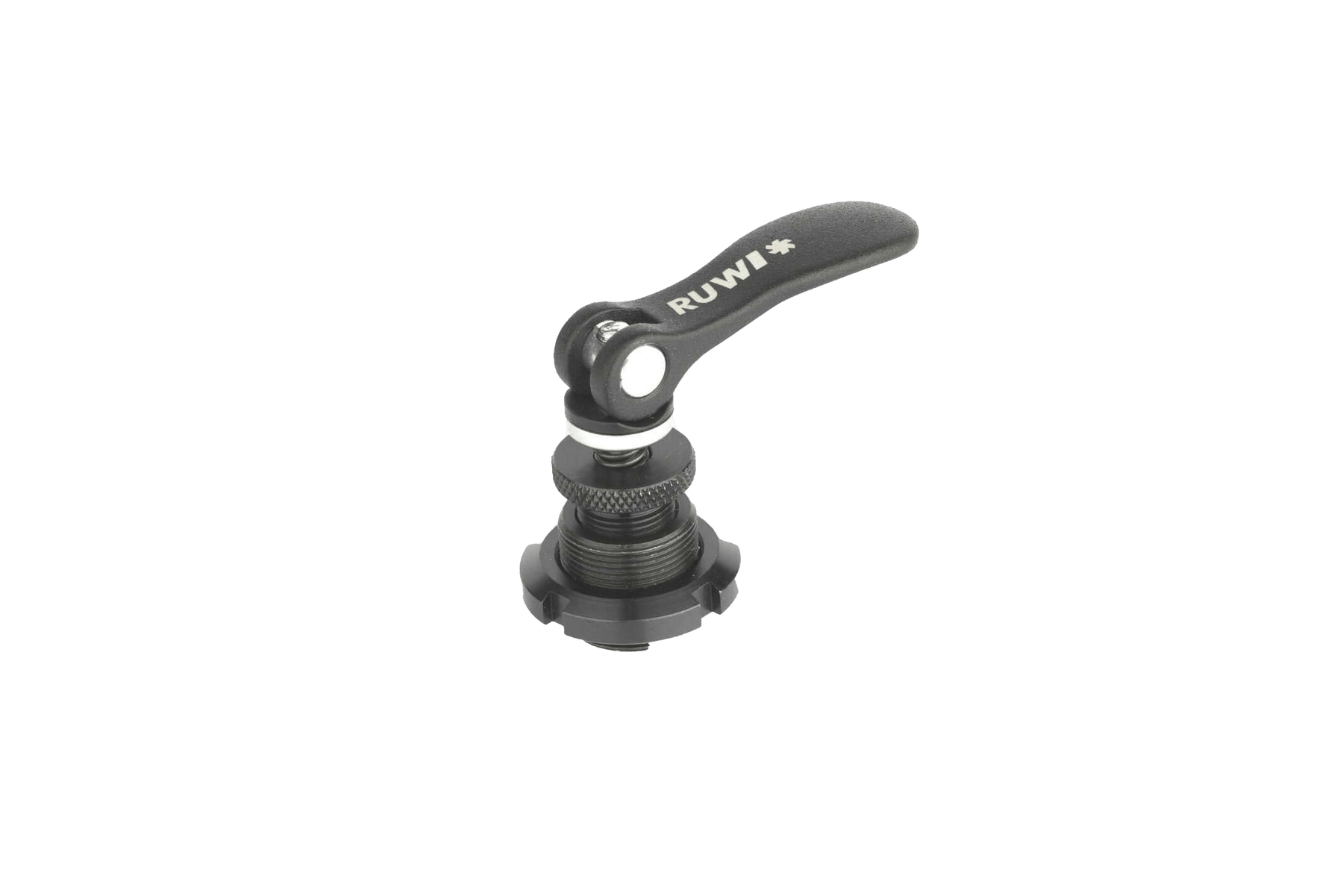

The RUWI quick-release clamp (Ø 20 mm) is the screw-mounted version designed for the 10 mm groove in aluminum profiles. Its nut sits in the profile groove; you can further secure it to your fixture using the M20 × 1 external thread and the included clamping nut. Clamping is tool-free: flip the eccentric lever, and the component is secure—flip the lever back, and it is released.

Using the lever, you can apply approximately 3 kN of clamping force with minimal effort. You can adjust the 9 mm height to fit your component; with a total height of 50 mm, the assembly remains low-profile. The slot nut is available for Item and Bosch profiles—both have differently shaped slots despite having the same slot width, which is why separate versions are offered. The base body is made of steel, and the eccentric lever is made of powder-coated cast aluminum, “Made in Germany.”

Slot 10 is the slot width for the large profile series. If you need a smaller slot, you’ll find versions with external threads for Slot 6 and Slot 8; if you prefer to clamp directly using a slot nut without screws, the quick-release overview will guide you to the appropriate sizes.

Possible applications

Screw-type, tool-free clamping mechanism using an external thread and a clamping nut
Fixture and Equipment Manufacturing: Install and Remove Stops and Component Holders in Seconds

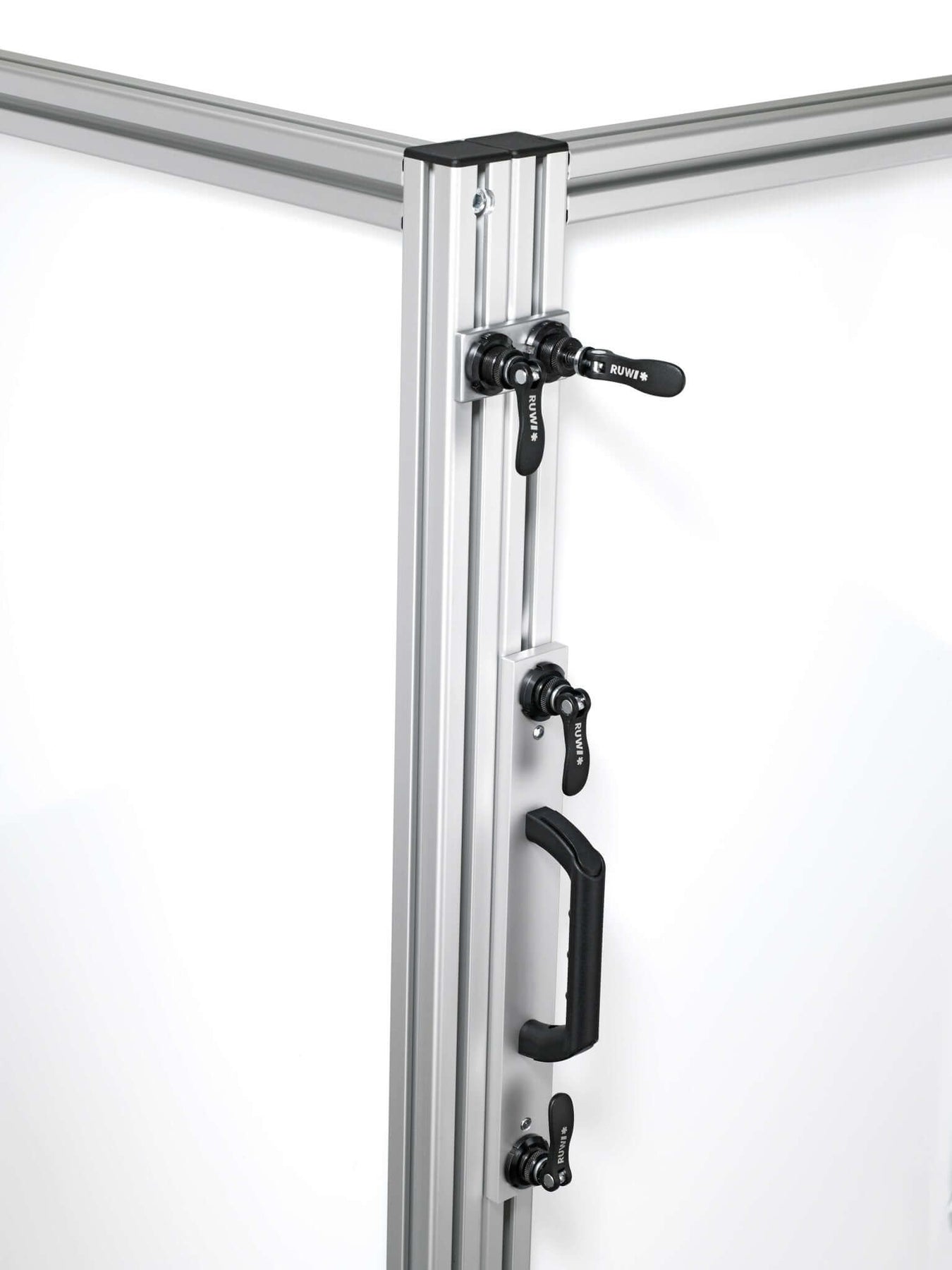

Plant and Special-Purpose Machine Construction: Fixed Clamping Points on Large Profile Frames
Exhibition stand construction and assembly lines: frequently changing structures without setup tools
Slotted nuts compatible with Item and Bosch – it’s the slot shape that matters, not just the width

Downloads

Quick-Release Clamp Instructions (PDF)

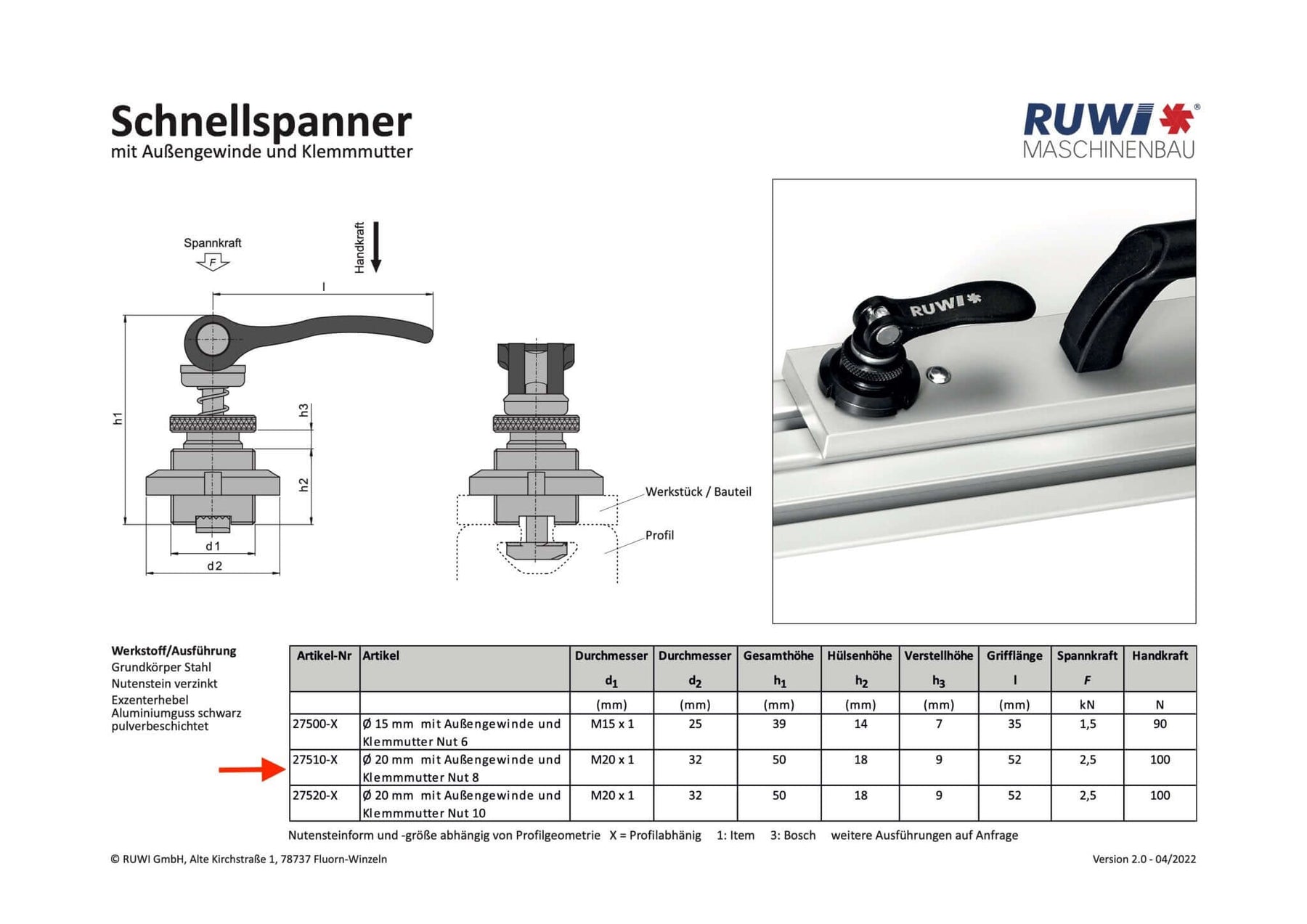

Quick-release clamp data sheet (PDF)
RUWI Steel Line Catalog (PDF)

All the details

- Dimensions & compatibility
- Base body diameter: 20 mm
- For groove width: 10 mm

- Thread & height
- External thread: M20 × 1
- Total height: 50 mm
- Adjustment height: 9 mm

- Clamping force
- approx. 3 kN

★★★★★
