Name: Schnellspanner ø 20 mm Nut mit Außengewinde und Klemmutter für Nut 10
Brand: RUWI
SKU: RUWI27520-1
Price: 34.28 EUR
Availability: InStock

RUWI Quick-release skewer, 20 mm diameter, with external thread for slot 10, Freisteller with gray eccentric lever

RUWI Quick-release clamp with external thread and locking nut, technical drawing with dimension table

slot Quick-Release Skewer, 20 mm diameter, with external thread and locking nut for slot 10

€34,28

Includes sales tax Plus shipping costs

Calculated for your business

Deductible immediately in the year of purchase

Less than €800 net: The full amount reduces your profit in the year of purchase · €34.28 gross

Calculate using your tax rate →Which clamp holds your workpiece? Go to the finder →

Guidance on a 30% tax rate and the purchase of a business—not tax advice.

Quick-Release Size

slot 10 items

slot 10 Bosch

Artisan Quality

By woodworking professionals, for woodworking professionals

Faster and More Reliable Shipping

In stock – delivered to your workshop in 3–5 business days
Out of stock – coming back soon

Our tools are shipped via DPD and DHL and usually arrive within 3–5 days. You'll receive a tracking number via email.

Our larger tools are shipped via Schenker and will arrive within a few business days. Upon request, the carrier can also deliver on a date of your choice, and you can coordinate the details with them by phone.

Packaging Dimensions
• Shipped in a cardboard box via DHL or DPD
• Dimensions: 190 × 140 × 50 mm

Our tools and machines are built to last. We use only high-quality components and have gained extensive experience in preventing problems in the workshop. That’s why we have no issues with warranty claims—even if they extend beyond the 2-year warranty period. We’re always looking for a good solution that works for both of us.

We have 100% of our replacement parts in stock.

Accessories

[{"id":54988758843772,"title":"Nut 10 Item","option1":"Nut 10 Item","option2":null,"option3":null,"sku":"RUWI27520-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Schnellspanner ø 20 mm Nut mit Außengewinde und Klemmutter für Nut 10 - Nut 10 Item","public_title":"Nut 10 Item","options":["Nut 10 Item"],"price":3428,"weight":100,"compare_at_price":null,"inventory_management":"shopify","barcode":"4260461084506","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":54988758876540,"title":"Nut 10 Bosch","option1":"Nut 10 Bosch","option2":null,"option3":null,"sku":"RUWI27520-3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Schnellspanner ø 20 mm Nut mit Außengewinde und Klemmutter für Nut 10 - Nut 10 Bosch","public_title":"Nut 10 Bosch","options":["Nut 10 Bosch"],"price":3428,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":"4260461083950","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Which clamp holds your workpiece in place?

The Clamp Finder guides you from the workpiece to the right clamp.

Launch Finder →

The RUWI quick-release clamp (Ø 20 mm) with external thread is the screw-mounted version for the slot 10 aluminum profiles. Its slot nut fits into the profile groove; you can further secure it to your fixture using the M20 × 1 external thread and the included clamping nut. To lock it in place tool-free: flip the eccentric lever, and the component is secured—move the lever back, and it is released.

Using the lever, you can apply approximately 3 kN clamping force with minimal hand force. You can adjust the adjustment height to 9 mm to fit your component; at 50 mm overall height , the overall height remains low. The base body is made of burnished steel, and the eccentric lever is made of powder-coated cast aluminum, manufactured in Germany.

Here's how to use it

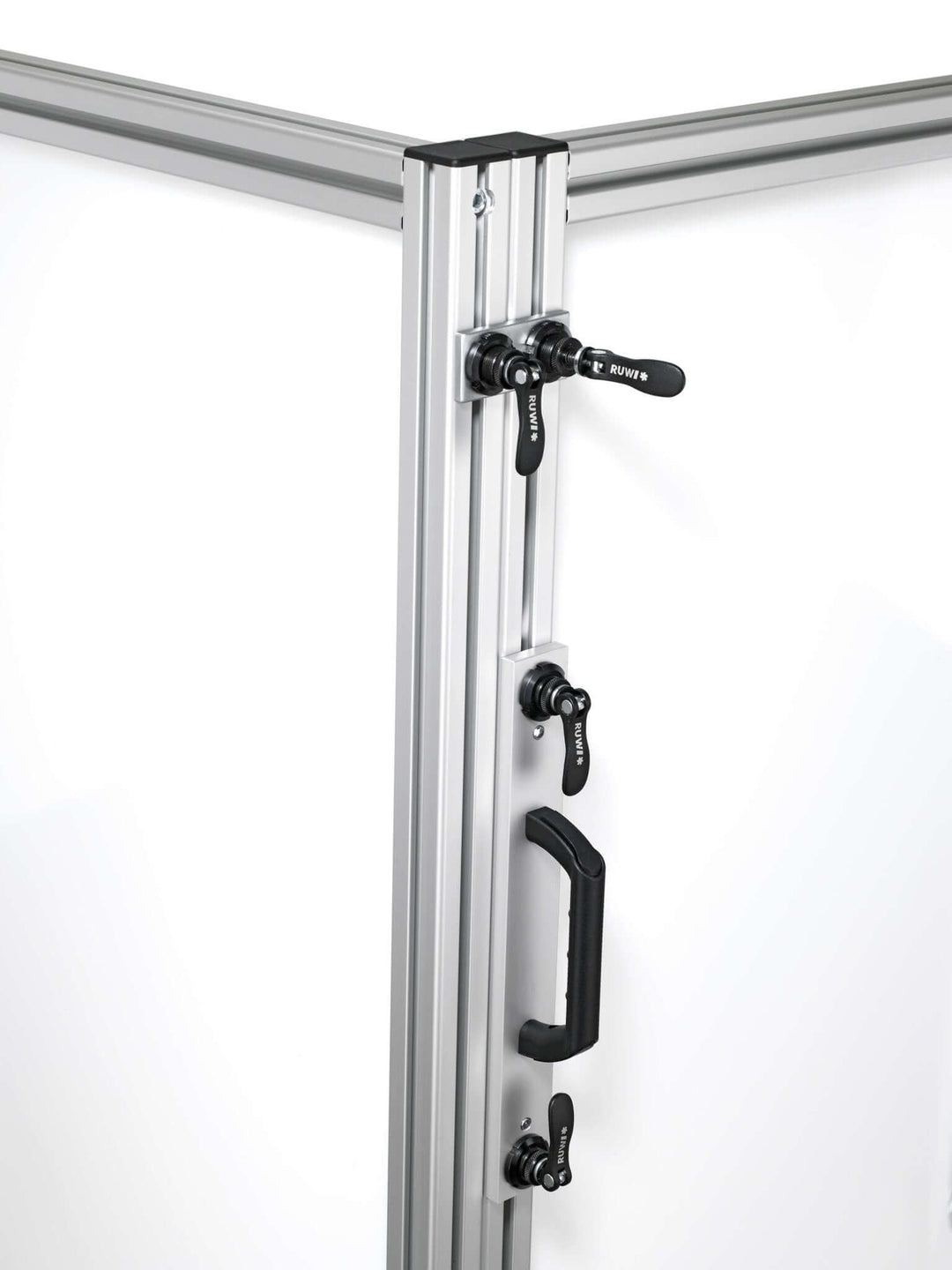

Fixed clamping points on large profile frames: The bolted connection keeps the clamping point securely in place in plant and special-purpose machinery construction—even under vibration.
Fixture and Equipment Construction: Clamp and release stops and component holders in seconds—the lever replaces the setup tool.
Assembly timing: Move the lever forward, component is in place—move the lever back, next component; the 9-mm adjustment height accommodate minor thickness variations.
Exhibition stand construction and assembly lines: frequently changing structures mounted in bolted, recurring positions.

Does this fit your aluminum profile?

slot 10 is the groove width for the large profile series. When ordering, select the slot nut for Item or Bosch profiles—both systems have differently shaped slots for the same groove width, which is why there are separate versions: It’s the groove shape that matters, not just the width.

If you need a smaller slot, there is a version with an external thread for slot 6 and slot 8; if you want the clamping point to move with the assembly without a screw connection, use the quick-release clamp with slot nut for slot 10. All sizes are listed in the quick-release clamp overview.

Downloads

All the details

Dimensions
Base body: Ø 20 mm
overall height : 50 mm
adjustment height : 9 mm

Thread
External thread: M20 × 1, with clamping nut

Material
Base body: Steel, black-oxide
Eccentric lever: Cast aluminum, powder-coated

Compatibility
Profiles: Aluminum system profiles, T-slot-rails, slotted tables (slot 10, Item) for RUWI27520-1
Profiles: Bosch profiles and compatible aluminum system profiles, T-slot-rails, slotted tables (slot 10) for RUWI27520-3

★★★★★
